CUI recommends a PCB layout with a solid ground plane, minimal trace lengths, and a decoupling capacitor (e.g., 10uF) between the input and output pins to reduce noise and ensure stable operation.
The PBK-3-5-B has built-in overvoltage protection (OVP) that can withstand input voltage transients up to 20V for 100ms. However, it's recommended to add external protection, such as a TVS diode, for more severe transient conditions.
While the datasheet specifies a maximum output current of 3A, the device can deliver up to 5A for short durations (e.g., 10ms) with proper thermal management and a suitable heat sink.
The PBK-3-5-B is rated for operation up to 85°C, but its performance may degrade above 70°C. For high-temperature applications, consider using a heat sink or a thermally enhanced package, and consult with CUI's application engineers for guidance.
Yes, the PBK-3-5-B is lead-free and RoHS-compliant, making it suitable for use in lead-free soldering processes. However, ensure that the soldering process follows the recommended temperature profile to prevent damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PBK-3-5-B Overview

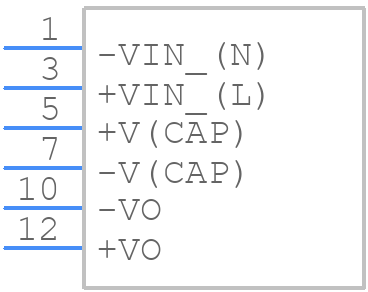

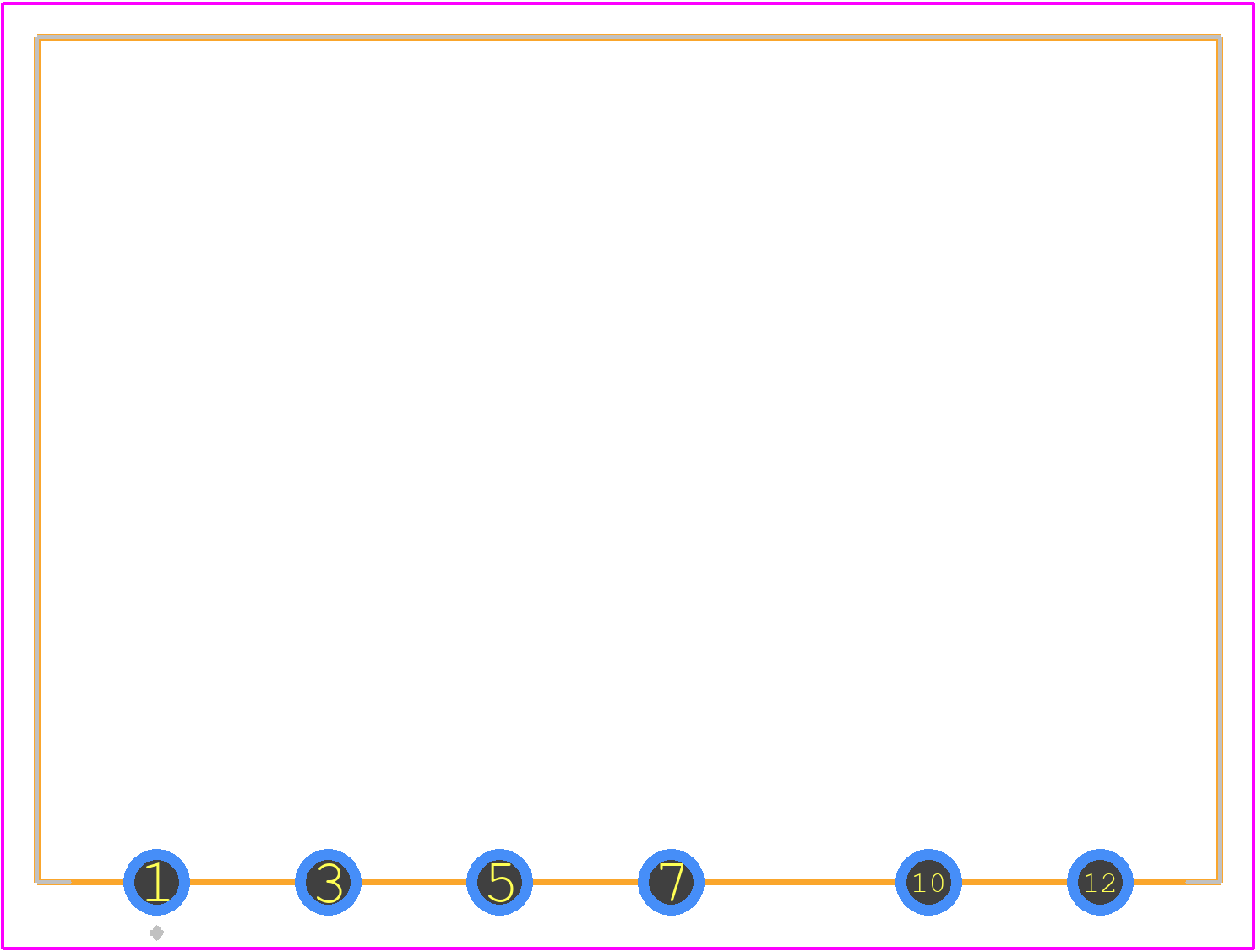

Use the download button to access the PBK-3-5-B schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like PBK-3,
or try a keyword search, such as Power Supply Modules
