PBO-3-S12 - CUI Inc.

Description: Switching Power Supplies 3W 12V 250mA Open SIP Vertical

Download PBO-3-S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

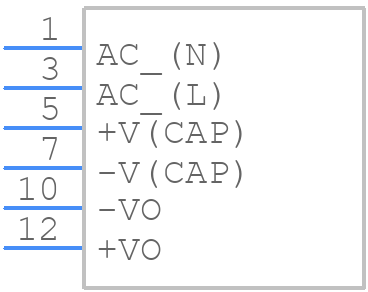

PBO-3-S12 - CUI Inc. - PCB symbol
click to zoom
PCB Footprints
PBO-3-S12 - CUI Inc. PCB footprint - Other - Other - PBO-3-S12-2
click to zoom
3D Models
PBO-3-S12 - CUI Inc. - 3D model - Other - PBO-3-S12-2
click to zoom

PBO-3-S12 Details

  • Manufacturer Part Number:

    PBO-3-S12

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    0

  • Additional Feature:

    LG-MAX, WD-MAX

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    305 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-XSMA-T6

  • Length:

    35 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    11.4 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    18 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    11 mm

PBO-3-S12 Frequently Asked Questions (FAQs)

  • CUI recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a thermal via to ensure efficient heat dissipation. A minimum of 1 oz copper thickness is recommended for the PCB.
  • The PBO-3-S12 has built-in input voltage transient protection, which can withstand voltage spikes up to 100 V for 100 ms. However, it's recommended to add external transient voltage suppression devices for harsh environments.
  • CUI provides a derating curve in the datasheet, which indicates that the output power should be reduced by 2.5% per degree Celsius above 50°C to ensure reliable operation.
  • Yes, the PBO-3-S12 can be used in a redundant or parallel configuration, but it's essential to ensure that the units are synchronized and properly connected to avoid oscillations or instability.
  • CUI estimates the MTBF rating for the PBO-3-S12 to be around 1.5 million hours at 25°C, calculated according to MIL-HDBK-217F.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBO-3-S12 Overview

Use the download button to access the PBO-3-S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBO-3, or try a keyword search, such as Power Supply Modules
