PBO-3-S3.3 - CUI Inc.

Description: Switching Power Supplies 1.98W 3.3V 600mA Open SIP Vertical

Download PBO-3-S3.3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

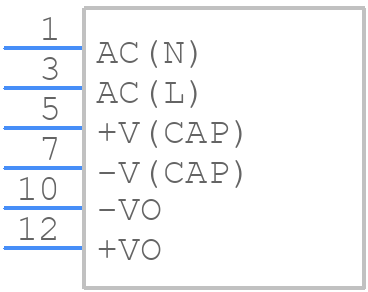

PBO-3-S3.3 - CUI Inc. - PCB symbol
click to zoom
PCB Footprints
PBO-3-S3.3 - CUI Inc. PCB footprint - Other - Other - PBO-3-S3.3-1
click to zoom
3D Models
PBO-3-S3.3 - CUI Inc. - 3D model - Other - PBO-3-S3.3-1
click to zoom

PBO-3-S3.3 Details

  • Manufacturer Part Number:

    PBO-3-S3.3

  • Brand Name:

    CUI Inc

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    CUI Inc

  • YTEOL:

    0

  • Additional Feature:

    LG-MAX, WD-MAX

  • Analog IC - Other Type:

    AC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    305 V

  • Input Voltage-Min:

    85 V

  • Input Voltage-Nom:

    115 V

  • JESD-30 Code:

    R-XSMA-T6

  • Length:

    35 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Voltage-Max:

    3.498 V

  • Output Voltage-Min:

    3.102 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    18 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    1.98 W

  • Trim/Adjustable Output:

    NO

  • Width:

    11 mm

PBO-3-S3.3 Frequently Asked Questions (FAQs)

  • CUI recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, ensure a minimum of 1mm clearance around the module to allow for airflow.
  • To ensure reliability and longevity, operate the module within the recommended temperature range (–40°C to 85°C). Implement proper thermal management, and avoid exposing the module to moisture, vibration, or physical stress.
  • The maximum allowable ripple current for the input capacitors is 1.5A RMS. Exceeding this value may reduce the module's lifespan or cause premature failure.
  • Yes, the PBO-3-S3.3 can be used in a redundant or parallel configuration. However, ensure proper synchronization and ORing diodes are used to prevent back-feeding and damage to the modules.
  • The typical efficiency of the PBO-3-S3.3 is around 85% at 50% load and 12V input. Efficiency may vary depending on the load and input voltage. Consult the datasheet or contact CUI for specific efficiency curves.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBO-3-S3.3 Overview

Use the download button to access the PBO-3-S3.3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBO-3, or try a keyword search, such as Power Supply Modules
