A good PCB layout for the PBO-3C-12 should include a solid ground plane, short and direct traces, and a decoupling capacitor (e.g., 10uF) placed close to the module. This helps to reduce EMI and improve overall performance.
To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves, provide adequate airflow, and consider using a heat sink or thermal interface material to dissipate heat. Additionally, ensure that the module is operated within its specified temperature range.
The recommended input voltage range for optimal efficiency is between 36V to 72V. Operating within this range ensures the highest possible efficiency and minimizes heat generation.
To troubleshoot issues with the output voltage, check the input voltage, output load, and module temperature. Verify that the input voltage is within the recommended range, the output load is within the specified current rating, and the module temperature is within the specified operating range. Also, check for any signs of physical damage or wear.
When handling the PBO-3C-12, always follow proper electrostatic discharge (ESD) precautions, such as wearing an ESD wrist strap or using an ESD mat. Avoid touching the module's electrical components, and handle the module by the edges or the pins to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PBO-3C-12 Overview

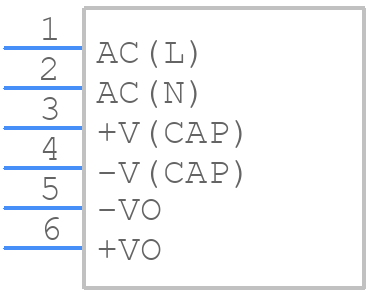

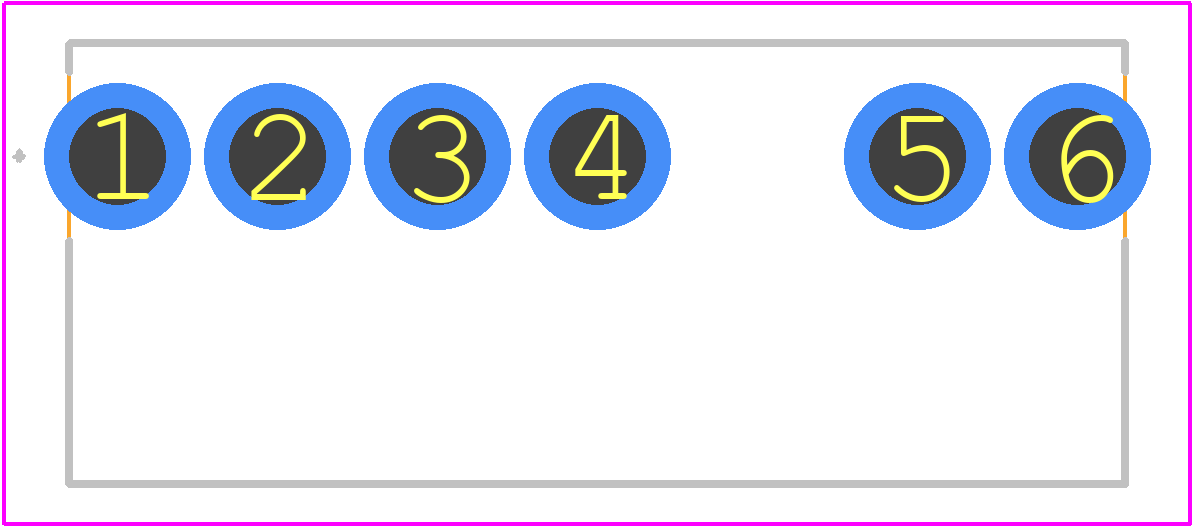

Use the download button to access the PBO-3C-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBO-3,
or try a keyword search, such as Power Supply Modules
