PBO-5-S5 footprint, schematic symbol and 3D model by CUI Inc.

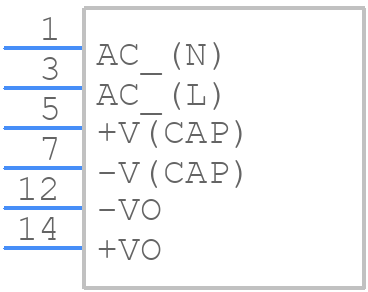

Symbol

click to zoom

PCB Footprints

PBO-5-S5 - CUI Inc. PCB footprint - Other - Other - PBO-5-S5-3

click to zoom

3D Models

PBO-5-S5 - CUI Inc. - 3D model - Other - PBO-5-S5-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PBO-5-S5
Part Number PBO-5-S5
Manufacturer CUI Inc.
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - PBO-5-S5-3
Released Date Feb 26, 2020
Last Modified Date May 18, 2023 10:57 AM UTC
Pinout / Pin List Click Here (Member Only)

PBO-5-S5 Details

Manufacturer Part Number:
PBO-5-S5
Brand Name:
CUI Inc
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
Manufacturer:
CUI Inc
YTEOL:
0
Additional Feature:
WD-MAX;ALSO OPERATE WITH 100-400VDC
Analog IC - Other Type:
AC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE
Control Mode:
VOLTAGE-MODE
Efficiency (Main Output):
74%
Input Voltage-Max:
264 V
Input Voltage-Min:
85 V
Input Voltage-Nom:
115 V
JESD-30 Code:
R-XSMA-T6
Length:
40 mm
Load Regulation-Max:
1.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
55 °C
Output Current-Max:
1 A
Output Voltage-Max:
5.1 V
Output Voltage-Min:
4.9 V
Output Voltage-Nom:
5 V
Package Body Material:
UNSPECIFIED
Package Code:
SMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Protections:
OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple Voltage (Main Out):
0.053025 Vrms
Seated Height-Max:
12.8 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
COMMERCIAL
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
2.54 mm
Terminal Position:
SINGLE
Total Power Output-Max:
5 W
Trim/Adjustable Output:
NO
Width:
20 mm

PBO-5-S5 Frequently Asked Questions (FAQs)

A good PCB layout for the PBO-5-S5 should prioritize minimal inductance and resistance in the power path. Keep the input and output capacitors close to the module, and use a solid ground plane to reduce noise and EMI.
Ensure good airflow around the module, and consider adding a heat sink if the module will be operating in a high-temperature environment. Also, avoid blocking the ventilation holes on the module.
The maximum output capacitance is not explicitly stated in the datasheet, but as a general rule, it's recommended to keep the output capacitance below 100uF to avoid stability issues.
Yes, the PBO-5-S5 can be used in redundant or parallel configurations, but it's essential to ensure proper synchronization and control of the modules to avoid instability or damage.
Start by verifying the input voltage, output load, and ambient temperature are within the specified ranges. Check the PCB layout and component selection for any potential issues. If the problem persists, consult the datasheet and application notes or contact CUI Inc's technical support.
