A good PCB layout for the PBO-5C-5 should include a solid ground plane, short and direct traces, and a decoupling capacitor (e.g., 10uF) placed close to the module. This helps to reduce EMI and improve overall performance.
To ensure reliable operation in high-temperature environments, make sure to follow the recommended derating curves, provide adequate airflow, and consider using a heat sink or thermal interface material to dissipate heat. Additionally, ensure that the module is operated within its specified temperature range.
A 10uF to 22uF, X7R or X5R ceramic capacitor is recommended for input filtering and decoupling. This helps to reduce input ripple and noise, ensuring stable operation.
To troubleshoot output voltage deviations or instability, check the input voltage, output load, and PCB layout. Ensure that the input voltage is within the specified range, the output load is within the recommended range, and the PCB layout is optimal. Also, verify that the module is properly soldered and that there are no signs of overheating.
A 10uF to 22uF, X7R or X5R ceramic capacitor is recommended for output filtering and decoupling. This helps to reduce output ripple and noise, ensuring stable operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PBO-5C-5 Overview

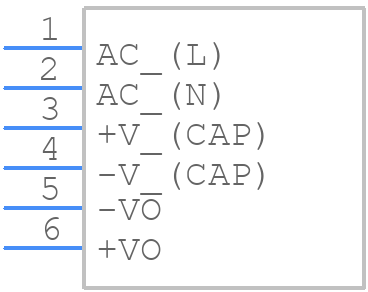

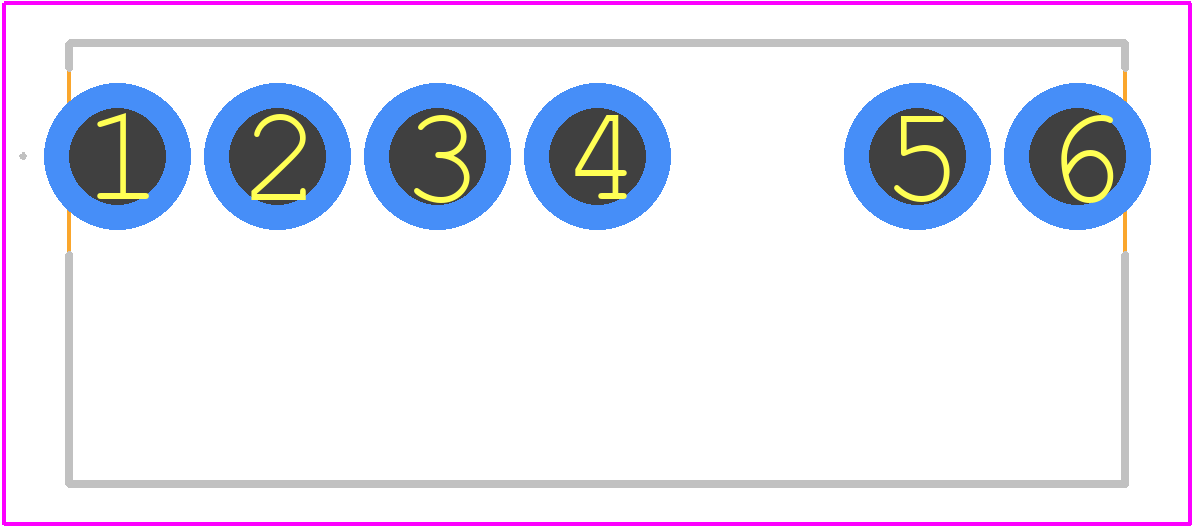

Use the download button to access the PBO-5C-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBO-5,
or try a keyword search, such as Power Supply Modules
