PBP-10.7+ - Mini-Circuits

Description: Signal Conditioning Lumped LC Band Pass Filter, 9.5 - 11.5 MHz, 50?

Download PBP-10.7+ Model

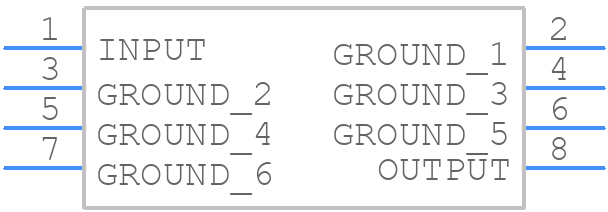

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PBP-10.7+ - Mini-Circuits PCB footprint - Other - Other - PBP-10.7+-2
click to zoom
3D Models
PBP-10.7+ - Mini-Circuits  - 3D model - Other - PBP-10.7+-2
click to zoom

PBP-10.7+ Details

  • Manufacturer Part Number:

    PBP-10.7+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, HERMETIC SEALED, CASE A01, 8 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Attenuation Frequency-Max:

    50 MHz

  • Attenuation Frequency-Min:

    15 MHz

  • Attenuation@Freq-Max:

    35 dB

  • Attenuation@Freq-Min:

    20 dB

  • Average Input Power:

    0.5 W

  • Center or Cutoff Frequency (fo/fc):

    10.7 MHz

  • Filter Type:

    BAND PASS FILTER

  • Height:

    10.16 mm

  • Input Impedance:

    50 OHM

  • Insertion Loss-Max:

    1.5 dB

  • Length:

    20.32 mm

  • Mounting Type:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Impedance:

    50 OHM Ω

  • VSWR:

    1.7

  • Width:

    10.16 mm

PBP-10.7+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes and evaluation board documentation. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency applications.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator tool on their website, which can help you determine the required components for optimal matching.
  • While the datasheet specifies a maximum input power of +10 dBm, the actual power handling capability depends on the specific application and operating conditions. As a general rule, it's recommended to derate the power handling by 3-5 dB to ensure reliable operation and prevent damage to the device.
  • Yes, the PBP-10.7+ can be used in a push-pull configuration to achieve higher output power and improved linearity. However, this requires careful design and layout considerations to ensure proper phasing and impedance matching.
  • The typical noise figure of the PBP-10.7+ is around 3.5 dB, but this can vary depending on the specific operating conditions, such as frequency, temperature, and input power level.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBP-10.7+ Overview

Use the download button to access the PBP-10.7+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBP-1, or try a keyword search, such as General Purpose Passive Filters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
