PBSS302PDH - Nexperia

Description: Bipolar (BJT) Transistor PNP 40 V 4 A 110MHz 360 mW Surface Mount 6-TSOP

Download PBSS302PDH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

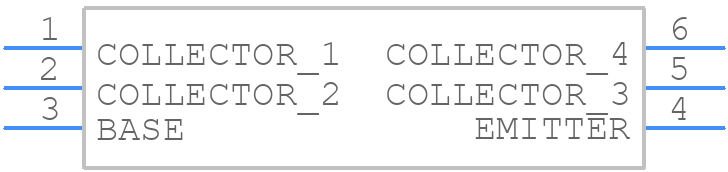

Symbol
PBSS302PDH - Nexperia - PCB symbol
click to zoom
PCB Footprints
PBSS302PDH - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT 457
click to zoom
3D Models
PBSS302PDH - Nexperia - 3D model - SOT23 (6-Pin) - SOT 457
click to zoom

PBSS302PDH Details

  • Manufacturer Part Number:

    PBSS302PDH

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    SC-74, SOT-457, TSOP-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT457

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    4

  • Collector Current-Max (IC):

    4 A

  • Collector-Base Capacitance-Max:

    50 pF

  • Collector-Emitter Voltage-Max:

    40 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    1.1 W

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    110 MHz

  • VCEsat-Max:

    0.45 V

PBSS302PDH Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the PBSS302PDH is -55°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance.
  • To ensure proper biasing, make sure to provide a stable voltage supply within the recommended range (VCC = 2.5 V to 5.5 V), and ensure the input signals are within the recommended voltage range (VIN = 0 V to VCC).
  • For optimal thermal management, use a multi-layer PCB with a solid ground plane, and ensure good thermal conductivity between the device and the PCB. Keep the device away from heat sources and ensure good airflow around the device.
  • To prevent ESD damage, handle the device by the body or pins, avoid touching the pins, and use an ESD wrist strap or mat when handling the device. Also, ensure the PCB design includes ESD protection components, such as TVS diodes or resistors.
  • Store the device in a dry, cool place (temperature range: -40°C to 30°C, humidity: 60% or less). Avoid exposing the device to direct sunlight, moisture, or extreme temperatures during storage or handling.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBSS302PDH Overview

Use the download button to access the PBSS302PDH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBSS3, or try a keyword search, such as Power Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
