PBSS4041SPN - Nexperia

Description: NXP PBSS4041SPN Dual NPN+PNP Low Saturation Bipolar Transistor, 6.7 A, 60 V, 8-Pin SOIC

Download PBSS4041SPN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

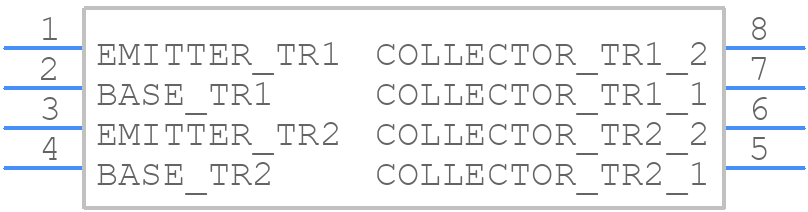

PBSS4041SPN - Nexperia - PCB symbol
click to zoom
PCB Footprints
PBSS4041SPN - Nexperia PCB footprint - Small Outline Packages - Small Outline Packages - SOT96-1 SO8
click to zoom
3D Models
PBSS4041SPN - Nexperia - 3D model - Small Outline Packages - SOT96-1 SO8
click to zoom

PBSS4041SPN Details

  • Manufacturer Part Number:

    PBSS4041SPN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Nexperia

  • YTEOL:

    0

  • Collector Current-Max (IC):

    6.7 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    75

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    130 MHz

PBSS4041SPN Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for PBSS4041SPN is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
  • To ensure proper biasing, make sure to follow the recommended operating conditions in the datasheet. Typically, this includes setting the input voltage (VCC) between 4.5V and 5.5V, and the output voltage (VOUT) within the specified range. Additionally, ensure the input and output capacitors are properly sized and placed close to the device.
  • For optimal thermal management, it's recommended to use a multi-layer PCB with a solid ground plane and a thermal pad connected to a heat sink or a large copper area. Keep the device away from heat sources and ensure good airflow. Follow Nexperia's recommended PCB layout guidelines and thermal design considerations in the datasheet.
  • The PBSS4041SPN has built-in ESD protection, but it's still essential to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap, mat, or workstation, and ensure the device is stored in an anti-static bag or container. Avoid touching the device's pins or handling it in a way that could generate static electricity.
  • The PBSS4041SPN is a low-dropout linear voltage regulator (LDO) suitable for a wide range of applications, including power supplies, battery-powered devices, and automotive systems. It's commonly used in audio and video equipment, industrial control systems, and medical devices, where low noise and high PSRR are required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PBSS4041SPN Overview

Use the download button to access the PBSS4041SPN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PBSS4, or try a keyword search, such as Power Bipolar Transistors

About Nexperia

Nexperia is a leading global player in the semiconductor industry. Specializing in essential electronic components, Nexperia offers a diverse range of products including discrete components, MOSFETs, logic ICs, and analog ICs. These components are integral to a multitude of applications across automotive, industrial, consumer electronics, and computing sectors, where reliability, performance, and efficiency are paramount.
