PC5933S - Anderson Power Products

Description: Heavy Duty Power Connectors POWERCLAW CONT ONLY MINI-PC VERT MT, AG

Download PC5933S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PC5933S - Anderson Power Products - PCB symbol
click to zoom
PCB Footprints

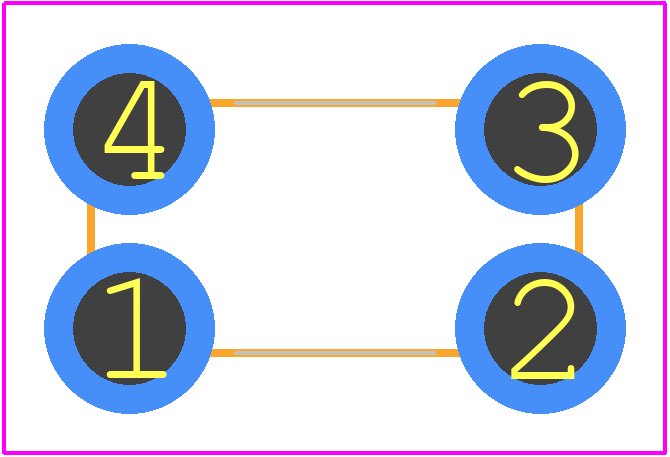

PC5933S - Anderson Power Products PCB footprint - Other - Other - PC5933S-1
click to zoom
3D Models
PC5933S - Anderson Power Products - 3D model - Other - PC5933S-1
click to zoom

PC5933S Details

  • Manufacturer Part Number:

    PC5933S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS AND REACH COMPLIANT

  • ECCN Code:

    EAR99

  • Manufacturer:

    Anderson Power Products

  • Approvals:

    CSA; CUL; UL

  • Assembly Item Name:

    CONTACT

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    COPPER ALLOY

  • Mounting Style:

    STRAIGHT

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Rated Current:

    55 A

  • Rated Voltage(AC):

    600 V

  • Rated Voltage(DC):

    600 V

  • Wire Size-Max:

    6 AWG

PC5933S Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 1.5-2.5 Nm (13-23 in-lbs).
  • Yes, the PC5933S is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1 vibration standard.
  • The maximum wire size that can be used with the PC5933S is 16 AWG (1.5 mm²).
  • Yes, the PC5933S is suitable for use in outdoor environments. It has a rating of IP67, which means it is protected against dust and water ingress.
  • The PC5933S is rated for operation up to 105°C (221°F). However, derating may be necessary for temperatures above 85°C (185°F).
