PC5934T-BK - Anderson Power Products

Description: Heavy Duty Power Connectors POWERCLAW CONT ONLY MIN-PC HORIZ MT-BULK

Download PC5934T-BK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PC5934T-BK - Anderson Power Products - PCB symbol
click to zoom
PCB Footprints

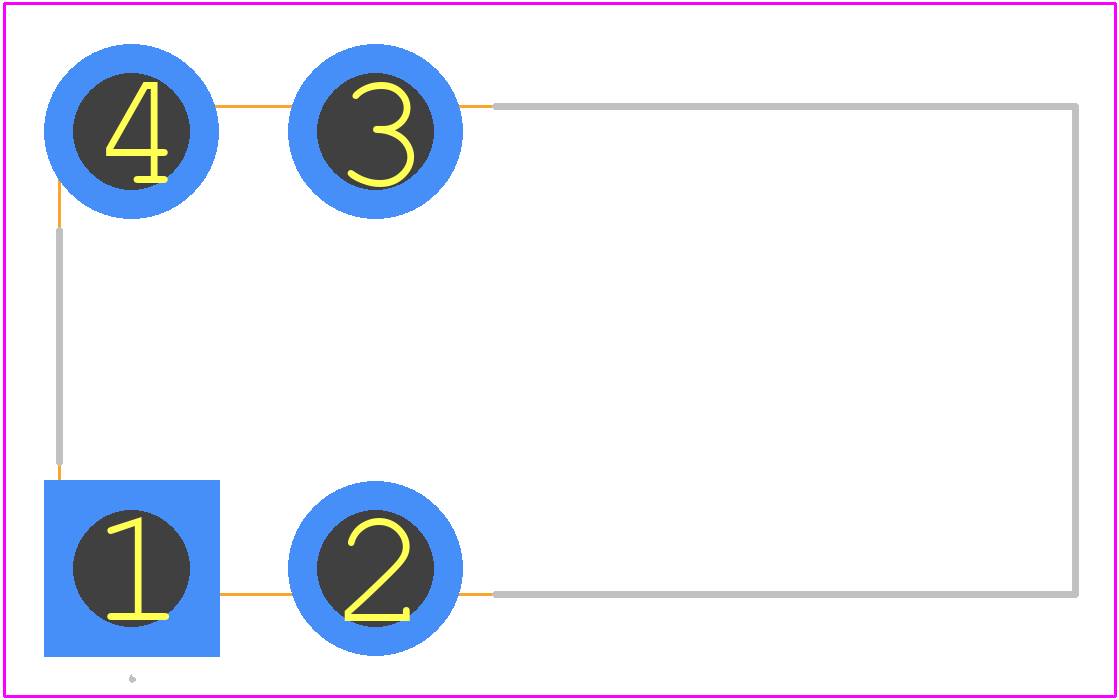

PC5934T-BK - Anderson Power Products PCB footprint - Other - Other - PC5934T-BK-2
click to zoom
3D Models
PC5934T-BK - Anderson Power Products - 3D model - Other - PC5934T-BK-2
click to zoom

PC5934T-BK Details

  • Manufacturer Part Number:

    PC5934T-BK

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Manufacturer:

    Anderson Power Products

  • Approvals:

    CSA; CUL; UL

  • Assembly Item Name:

    CONTACT

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    COPPER ALLOY

  • Mounting Style:

    RIGHT ANGLE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Rated Current:

    55 A

  • Rated Voltage:

    600 V

  • Rated Voltage(DC):

    600 V

  • Wire Size-Max:

    6 AWG

PC5934T-BK Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the PC5934T-BK is 6-8 in-lbs (0.7-0.9 Nm).
  • Yes, the PC5934T-BK is designed to withstand high-vibration environments and is suitable for use in applications with vibration levels up to 10G.
  • Yes, the PC5934T-BK meets the requirements of UL94-V0 for flammability and is suitable for use in applications requiring this standard.
  • The PC5934T-BK is designed to operate in temperatures ranging from -40°C to 105°C (-40°F to 221°F).
  • Yes, the PC5934T-BK is designed to operate in humid or wet environments and meets the requirements of IEC 60529 IP67 for ingress protection.
