PC5934T - Anderson Power Products

Description: Heavy Duty Power Connectors Powerclaw CONT ONLY MINI-PC HORIZ MT, Sn

Download PC5934T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PC5934T - Anderson Power Products - PCB symbol
click to zoom
PCB Footprints

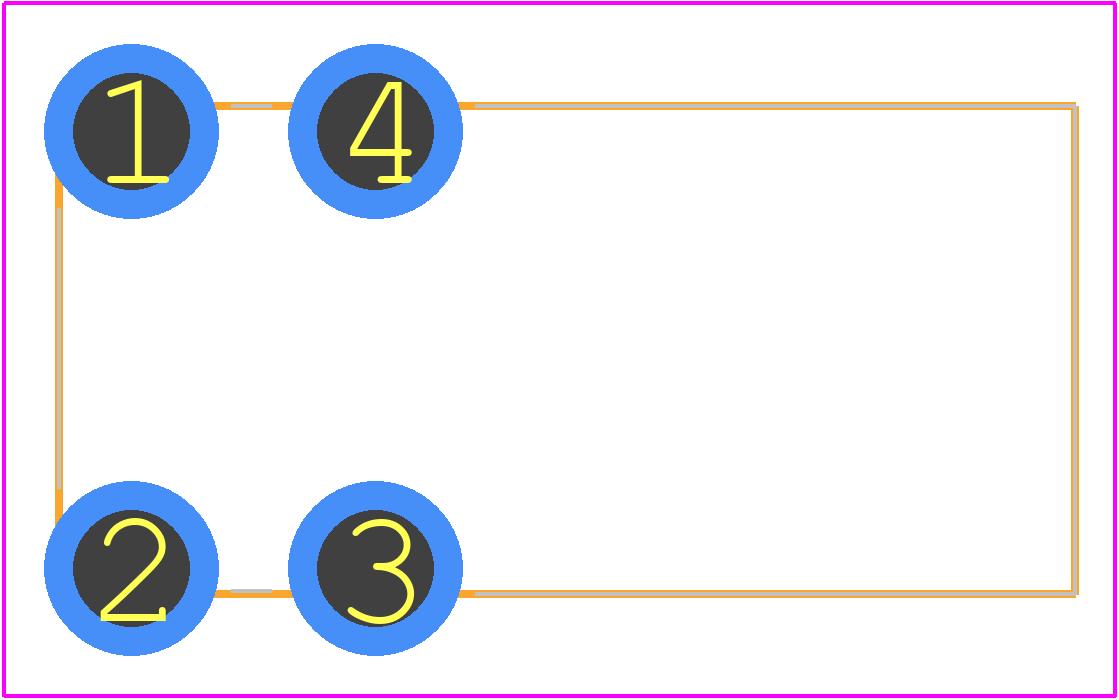

PC5934T - Anderson Power Products PCB footprint - Other - Other - PC5934T-5
click to zoom
3D Models
PC5934T - Anderson Power Products - 3D model - Other - PC5934T-5
click to zoom

PC5934T Details

  • Manufacturer Part Number:

    PC5934T

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    ROHS AND REACH COMPLIANT

  • Manufacturer:

    Anderson Power Products

  • Approvals:

    CSA; CUL; UL

  • Assembly Item Name:

    CONTACT

  • Connector Support Type:

    CONNECTOR ACCESSORY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Material:

    COPPER ALLOY

  • Mounting Style:

    RIGHT ANGLE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -20 °C

  • Rated Current:

    55 A

  • Rated Voltage(AC):

    600 V

  • Rated Voltage(DC):

    600 V

  • Wire Size-Max:

    6 AWG

PC5934T Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 1.5-2.5 Nm (13-22 in-lbs).
  • Yes, the PC5934T is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1 vibration standard.
  • The maximum wire size that can be used with the PC5934T is 16 AWG (1.5 mm²).
  • Yes, the PC5934T is suitable for use in outdoor environments. It has a rating of IP67, which means it is protected against dust and water ingress.
  • The PC5934T is rated for operation up to 105°C (221°F). However, derating may be necessary for temperatures above 85°C (185°F).
