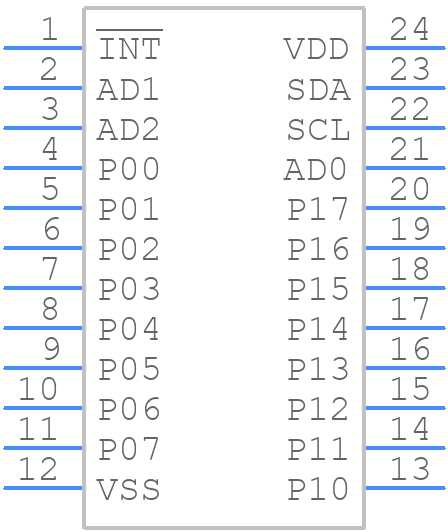

PCA8575DB,118 - NXP

PCA8575DB,118 Details

• Manufacturer Part Number:

  PCA8575DB,118

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  End Of Life

• Part Package Code:

  SSOP2

• Package Description:

  SSOP,

• Pin Count:

  24

• Manufacturer Package Code:

  SOT340-1

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  1

• Clock Frequency-Max:

  0.4 MHz

• JESD-30 Code:

  R-PDSO-G24

• JESD-609 Code:

  e4

• Length:

  8.2 mm

• Moisture Sensitivity Level:

  1

• Number of Bits:

  16

• Number of I/O Lines:

  18

• Number of Ports:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2 mm

• Supply Current-Max:

  0.01 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5.3 mm

• uPs/uCs/Peripheral ICs Type:

  PARALLEL IO PORT, GENERAL PURPOSE
