PCA9306DTR2G - onsemi

Description: Level translator,dual,I2C/SMBus,TSSOP8 ON Semiconductor PCA9306DTR2G, LVDS Translator & Repeater, -0.5 → 7 V, 8-Pin, TSSOP

Download PCA9306DTR2G Model

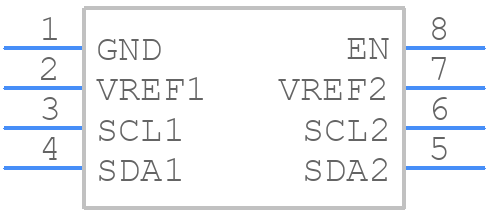

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PCA9306DTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP8 4.4x3 CASE 948AL ISSUE O
click to zoom
3D Models
PCA9306DTR2G - onsemi  - 3D model - Small Outline Packages - TSSOP8 4.4x3 CASE 948AL ISSUE O
click to zoom

PCA9306DTR2G Details

  • Manufacturer Part Number:

    PCA9306DTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP8, 4.4x3

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    948AL

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    3.3 ns

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Nom:

    1 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

PCA9306DTR2G Frequently Asked Questions (FAQs)

  • The maximum operating frequency of PCA9306DTR2G is 400 kHz.
  • To ensure signal integrity, use a 100-ohm differential impedance transmission line, and keep the trace length as short as possible. Also, use a common-mode filter or a ferrite bead to reduce electromagnetic interference (EMI).
  • Keep the differential pairs as close together as possible, and use a symmetrical layout to minimize skew. Route the traces away from noise sources and keep them as short as possible. Use a ground plane to reduce electromagnetic radiation.
  • Power sequencing is not critical for PCA9306DTR2G, but it's recommended to power up the VCC pin before the VREF pin to ensure proper operation.
  • The maximum cable length supported by PCA9306DTR2G depends on the specific application and the type of cable used. However, as a general guideline, the maximum cable length is around 10 meters for a 100-ohm differential impedance transmission line.
