PCA9306FMUTAG - onsemi

Description: Translation - Voltage Levels DUAL I2C BUS

Download PCA9306FMUTAG Model

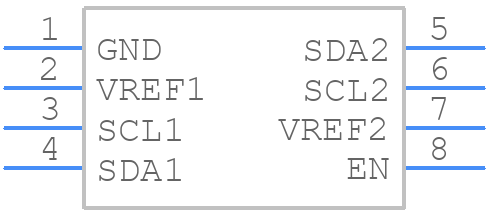

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PCA9306FMUTAG - onsemi PCB footprint - Other - Other - UDFN8, 1.45x1, 0.35P CASE 517BZ−01 ISSUE O
click to zoom
3D Models
PCA9306FMUTAG - onsemi  - 3D model - Other - UDFN8, 1.45x1, 0.35P CASE 517BZ−01 ISSUE O
click to zoom

PCA9306FMUTAG Details

  • Manufacturer Part Number:

    PCA9306FMUTAG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    UDFN-8

  • Manufacturer Package Code:

    517BZ

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    3.3 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    1.45 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.04,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.8 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

PCA9306FMUTAG Frequently Asked Questions (FAQs)

  • The maximum operating frequency of PCA9306FMUTAG is 400 kHz, but it can be operated at higher frequencies with reduced voltage swing.
  • To ensure signal integrity, use a transmission line with a characteristic impedance of 50 ohms, and terminate the line with a 50-ohm resistor. Also, use a low-ESR capacitor for power decoupling.
  • For optimal performance, keep the input and output traces as short as possible, and use a symmetrical layout to minimize electromagnetic interference (EMI).
  • Yes, PCA9306FMUTAG can be used for bidirectional communication, but it requires an external direction control signal to switch between transmit and receive modes.
  • To avoid latch-up, ensure that the power supply voltage (VCC) is applied before the input signal, and that the input signal is removed before VCC is removed during power-down.
