PCA9306JKZ - NXP

Description: Voltage Level Translator Bidirectional 1 Circuit 2 Channel 8-X2SON (1.35x1) , 1.8 V ~ 5.5 V , -40°C ~ 105°C (TA)

Download PCA9306JKZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

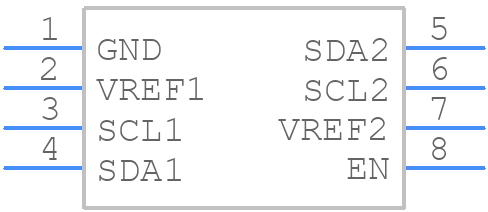

PCA9306JKZ - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9306JKZ - NXP PCB footprint - Other - Other - X2SON8(SOT2015-1)
click to zoom
3D Models
PCA9306JKZ - NXP - 3D model - Other - X2SON8(SOT2015-1)
click to zoom

PCA9306JKZ Details

  • Manufacturer Part Number:

    PCA9306JKZ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    X2SON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7

  • Delay-Max:

    3.3 ns

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    1.35 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSON

  • Package Equivalence Code:

    SOLCC8,.04,14

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.5 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.8 V

  • Supply Voltage1-Nom:

    2 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.35 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1 mm

PCA9306JKZ Frequently Asked Questions (FAQs)

  • The maximum operating frequency of PCA9306JKZ is 400 kHz, as specified in the datasheet. However, it's recommended to operate it at a frequency below 300 kHz for optimal performance and to minimize power consumption.
  • To ensure reliable communication, make sure to follow the I2C bus specifications, use proper pull-up resistors, and keep the bus capacitance low. Also, ensure that the PCA9306JKZ is properly powered and that the voltage levels are within the specified range.
  • Yes, PCA9306JKZ can be used for bidirectional voltage translation. It can translate signals from a low-voltage side (e.g., 1.8V) to a high-voltage side (e.g., 3.3V) and vice versa. However, make sure to follow the datasheet guidelines for voltage translation and signal direction.
  • To handle hot-swapping or insertion/removal of devices on the I2C bus, use the PCA9306JKZ's built-in enable pin (EN) to disable the device during insertion/removal. This prevents bus conflicts and ensures reliable operation. Also, consider using a bus buffer or repeater to improve bus reliability.
  • The maximum current that PCA9306JKZ can sink or source is 3 mA per pin. However, it's recommended to keep the current below 1 mA per pin to ensure reliable operation and to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9306JKZ Overview

Use the download button to access the PCA9306JKZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA93, or try a keyword search, such as Level Translators

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
