PCA9306USG - onsemi

Description: Translation - Voltage Levels

Download PCA9306USG Model

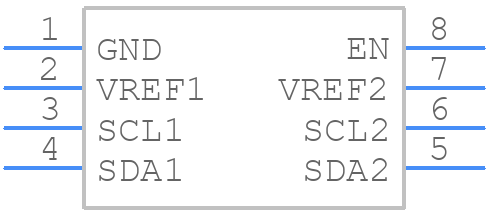

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PCA9306USG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - US8 *
click to zoom
3D Models
PCA9306USG - onsemi  - 3D model - Small Outline Packages - US8 *
click to zoom

PCA9306USG Details

  • Manufacturer Part Number:

    PCA9306USG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    US8

  • Package Description:

    US-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    493-01

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    3.3 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    2.3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSSOP8,.11,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    1.8 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Gold/Palladium (Ni/Au/Pd)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

PCA9306USG Frequently Asked Questions (FAQs)

  • The maximum operating frequency of PCA9306USG is 400 kHz, but it can be operated at higher frequencies with reduced voltage swing.
  • To ensure signal integrity, use a low-ESR capacitor, minimize trace length, and use a ground plane to reduce noise and electromagnetic interference (EMI).
  • The recommended layout for PCA9306USG is to place the device close to the battery, use a star topology for power distribution, and keep the analog and digital grounds separate.
  • PCA9306USG has built-in ESD protection, but additional protection can be achieved by using TVS diodes or ESD protection devices on the input lines.
  • The power consumption of PCA9306USG is typically around 1.5 μA in shutdown mode and 150 μA in active mode, but this can vary depending on the operating frequency and voltage.
