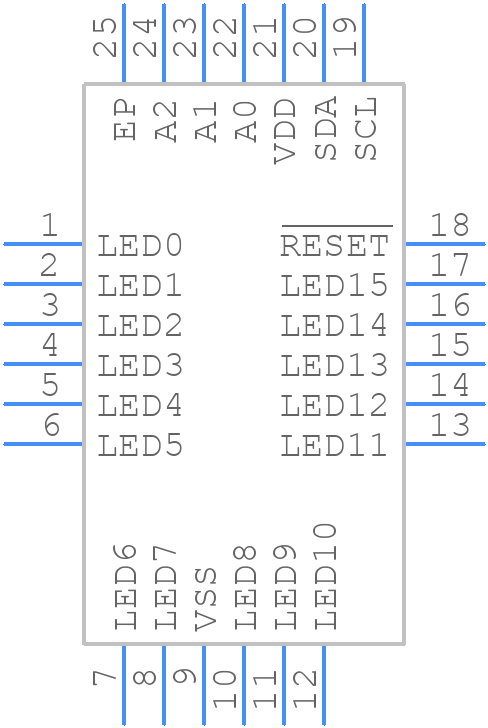

PCA9532BS,118 - NXP

PCA9532BS,118 Details

• Manufacturer Part Number:

  PCA9532BS,118

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFN

• Package Description:

  4 X 4 MM, 0.85 MM HEIGHT, PLASTIC, MO-220, SOT-616-1, HVQFN-24

• Pin Count:

  24

• Manufacturer Package Code:

  SOT616-1

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  7.37

• Data Input Mode:

  SERIAL

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LED DISPLAY DRIVER

• JESD-30 Code:

  S-PQCC-N24

• JESD-609 Code:

  e4

• Length:

  4 mm

• Moisture Sensitivity Level:

  1

• Multiplexed Display Capability:

  NO

• Number of Functions:

  1

• Number of Segments:

  16

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC24,.16SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1 mm

• Supply Current-Max:

  0.55 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  2.3 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4 mm

• fmax-Min:

  0.4 MHz
