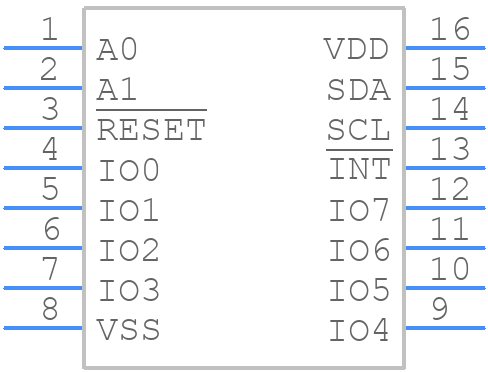

PCA9538PW/Q900,118 - NXP

PCA9538PW/Q900,118 Details

• Manufacturer Part Number:

  PCA9538PW/Q900,118

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  TSSOP

• Package Description:

  TSSOP-16

• Pin Count:

  16

• Manufacturer Package Code:

  SOT403-1

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Factory Lead Time:

  16 Weeks

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  6.73

• Clock Frequency-Max:

  0.4 MHz

• JESD-30 Code:

  R-PDSO-G16

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Bits:

  8

• Number of I/O Lines:

  8

• Number of Ports:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  100 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.3 V

• Supply Voltage-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  PARALLEL IO PORT, GENERAL PURPOSE
