PCA9543APW,112 - NXP

Description: NXP - PCA9543APW,112 - Specialized Interface, I2C, SMBus, 2.3 V, 5.5 V, TSSOP, 14 Pins

Download PCA9543APW,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

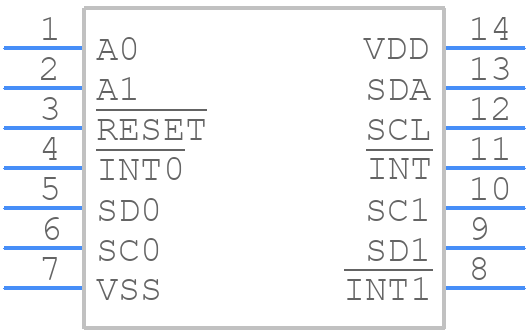

Symbol
PCA9543APW,112 - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9543APW,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP14
click to zoom
3D Models
PCA9543APW,112 - NXP - 3D model - Small Outline Packages - TSSOP14
click to zoom

PCA9543APW,112 Details

  • Manufacturer Part Number:

    PCA9543APW,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    SOT402-1

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Analog IC - Other Type:

    SINGLE-ENDED MULTIPLEXER

  • JESD-30 Code:

    R-PDSO-G14

  • Length:

    5 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

PCA9543APW,112 Frequently Asked Questions (FAQs)

  • The PCA9543APW,112 can support I2C bus frequencies up to 400 kHz, but it's recommended to limit it to 100 kHz for reliable operation.
  • Yes, the PCA9543APW,112 can be used as a level shifter for I2C signals, but it's not recommended as it's primarily designed as a bus switch. For level shifting, it's better to use a dedicated level shifter IC.
  • To ensure correct switching, make sure to use the enable pins (EN0 and EN1) to control the switching between the two I2C buses. Also, ensure that the voltage levels on the enable pins are within the recommended range.
  • The PCA9543APW,112 can sink or source up to 10 mA of current on the I2C bus, but it's recommended to limit it to 5 mA for reliable operation.
  • No, the PCA9543APW,112 is designed to switch between only two I2C buses. If you need to switch between more than two buses, you'll need to use multiple PCA9543APW,112 devices or a different IC.
