PCA9564PW,112 - NXP

Description: I/O Controller Interface IC 400KHZ I2C BUS CTRLR

Download PCA9564PW,112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

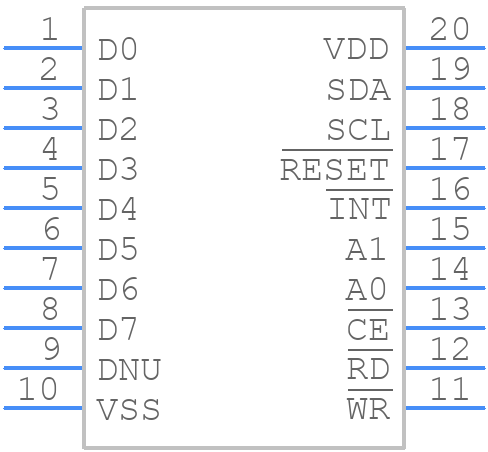

PCA9564PW,112 - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9564PW,112 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT360-1
click to zoom
3D Models
PCA9564PW,112 - NXP - 3D model - Small Outline Packages - SOT360-1
click to zoom

PCA9564PW,112 Details

  • Manufacturer Part Number:

    PCA9564PW,112

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP2

  • Package Description:

    4.40 MM, PLASTIC, MO-153, SOT-360-1, TSSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    SOT360-1

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Address Bus Width:

    2

  • Bus Compatibility:

    8049; 8051; 6800; 68000; Z80

  • Clock Frequency-Max:

    9 MHz

  • External Data Bus Width:

    8

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    6 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, I2C

PCA9564PW,112 Frequently Asked Questions (FAQs)

  • A good PCB layout for PCA9564PW,112 involves keeping the input and output tracks as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure EMC, use a shielded enclosure, keep cables and wires away from the device, and use a common-mode choke or ferrite bead on the I2C bus lines. Additionally, follow the recommended PCB layout and use a low-pass filter on the power supply lines.
  • The maximum cable length for I2C bus lines depends on the clock frequency and the capacitance of the bus. As a general rule, keep the cable length below 10 meters for a 400 kHz clock frequency. For longer cables, use repeaters or buffers to maintain signal integrity.
  • The PCA9564PW,112 has a built-in POR and BOD circuitry. Ensure that the power supply voltage is stable and within the recommended range. The device will automatically reset and recover when the power supply voltage returns to a stable state.
  • The recommended operating temperature range for PCA9564PW,112 is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9564PW,112 Overview

Use the download button to access the PCA9564PW,112 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA95, or try a keyword search, such as Bus Controllers
