PCA9575PW1,118 - NXP

Description: I/O Expander 16 I2C, SMBus 400 kHz 24-TSSOP

Download PCA9575PW1,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

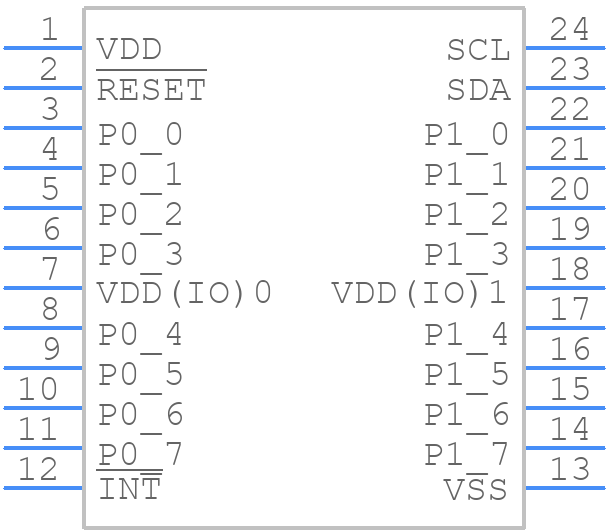

PCA9575PW1,118 - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9575PW1,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT355-1 (TSSOP24)
click to zoom
3D Models
PCA9575PW1,118 - NXP - 3D model - Small Outline Packages - SOT355-1 (TSSOP24)
click to zoom

PCA9575PW1,118 Details

  • Manufacturer Part Number:

    PCA9575PW1,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP2

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOT355-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

PCA9575PW1,118 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of PCA9575PW1,118 is 400 kHz.
  • Up to 8 I2C-bus addresses can be assigned to PCA9575PW1,118 using the A0, A1, and A2 pins.
  • The maximum current sink capability of PCA9575PW1,118 is 25 mA per output.
  • Yes, PCA9575PW1,118 is compatible with 5 V systems, but it can also operate at 3.3 V or 1.8 V with some limitations.
  • Yes, PCA9575PW1,118 can be used as a level translator between 1.8 V, 3.3 V, and 5 V systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9575PW1,118 Overview

Use the download button to access the PCA9575PW1,118 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA95, or try a keyword search, such as Parallel IO Ports

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
