PCA9701PW - NXP

Description: 16/8-channel 18V-tolerant SPI GPI shift registers with low power, interrupt generation, and automotive-grade ESD protection up to ±8kV.

Download PCA9701PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

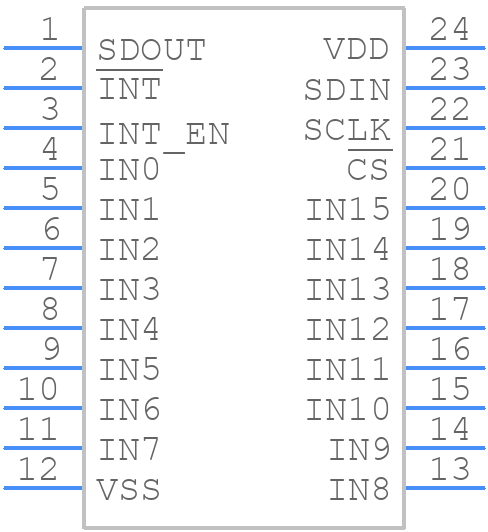

PCA9701PW - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9701PW - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP24
click to zoom
3D Models
PCA9701PW - NXP - 3D model - Small Outline Packages - TSSOP24
click to zoom

PCA9701PW Details

  • Manufacturer Part Number:

    PCA9701PW

  • Source Url Status Check Date:

    2013-06-14 00:00:00

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCA9701PW Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11588, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To configure the PCA9701PW for I2C bus stretching, set the STB pin high and ensure that the SCL pin is pulled up to VCC. The device will then stretch the clock signal to allow for slower slave devices on the bus. Refer to the datasheet section 8.3.1 for more details.
  • The PCA9701PW can drive a maximum capacitive load of 400 pF on the SDA and SCL lines. Exceeding this limit may result in signal degradation or non-compliance with I2C bus specifications.
  • To implement clock synchronization, connect the SCL pin to an external clock source and set the ECS pin high. The PCA9701PW will then synchronize its internal clock with the external clock signal. Refer to the datasheet section 8.3.2 for more details.
  • The recommended power-up sequence for the PCA9701PW is to apply VCC first, followed by the input signals (SCL, SDA, etc.). This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9701PW Overview

Use the download button to access the PCA9701PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCA97, or try a keyword search, such as Other Interface ICs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
