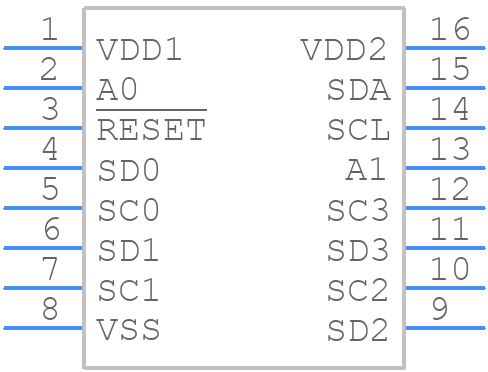

PCA9846PWJ - NXP

PCA9846PWJ Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of PCA9846PWJ?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital sections separate, and use a common ground point for analog and digital grounds.
• How do I ensure reliable communication between the PCA9846PWJ and the microcontroller?
  Use a pull-up resistor on the SCL line, and ensure the microcontroller's clock frequency is within the PCA9846PWJ's specified range (100 kHz to 400 kHz). Also, use a buffer or repeater if the bus is long or has multiple devices.
• What is the maximum cable length for I2C communication with PCA9846PWJ?
  The maximum cable length depends on the clock frequency and bus capacitance. As a rule of thumb, keep the cable length below 10 meters for 100 kHz and 3 meters for 400 kHz. Use a repeater or buffer for longer cables.
• How do I handle power-on reset and brown-out detection with PCA9846PWJ?
  Use an external power-on reset circuit or a dedicated reset IC to ensure a clean power-on reset. For brown-out detection, use an external voltage supervisor or a dedicated brown-out detection IC.
• What are the thermal considerations for PCA9846PWJ?
  The PCA9846PWJ has a thermal shutdown feature. Ensure good thermal design, such as using a heat sink or thermal pad, to keep the junction temperature below 150°C. Avoid overheating, which can cause permanent damage.
