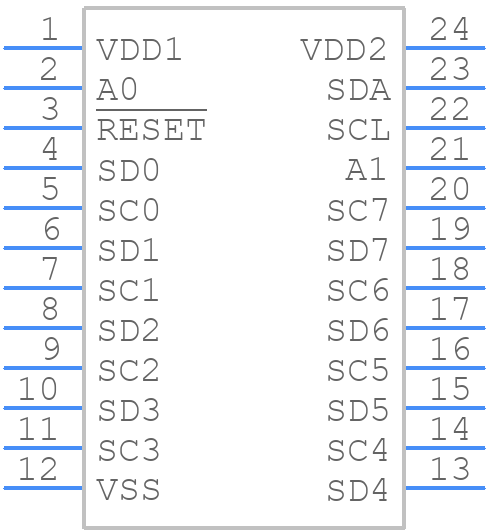

PCA9847PW - NXP

PCA9847PW Details

• Manufacturer Part Number:

  PCA9847PW

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  TSSOP-24

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  5

• Delay-Max:

  1 ns

• Interface IC Type:

  VOLTAGE LEVEL TRANSLATOR

• JESD-30 Code:

  R-PDSO-G24

• Length:

  7.8 mm

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-DRAIN

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP24,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  0.15 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  0.8 V

• Supply Voltage-Nom:

  1.2 V

• Supply Voltage1-Max:

  3.6 V

• Supply Voltage1-Min:

  1.65 V

• Supply Voltage1-Nom:

  1.8 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
