PCA9847PWJ - NXP

Description: Switch ICs - Various 8-channel ultra-low voltage, Fm+ I2C-bus multiplexer with reset

Download PCA9847PWJ Model
Schematic
symbols

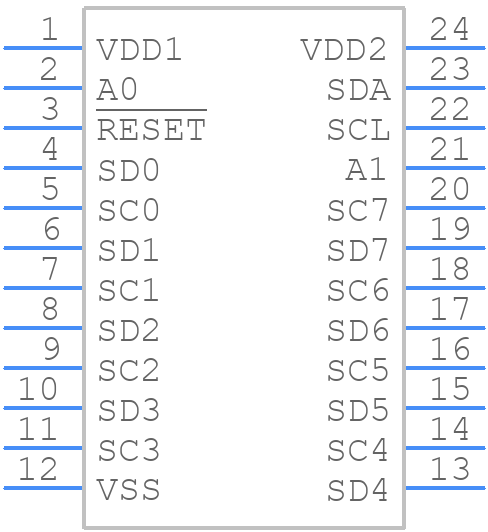

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PCA9847PWJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP24
click to zoom
3D Models
PCA9847PWJ - NXP  - 3D model - Small Outline Packages - TSSOP24
click to zoom

PCA9847PWJ Details

  • Manufacturer Part Number:

    PCA9847PWJ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP2

  • Package Description:

    TSSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    SOT355-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Delay-Max:

    1 ns

  • Interface IC Type:

    VOLTAGE LEVEL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G24

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP24,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.15 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    0.8 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.65 V

  • Supply Voltage1-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

PCA9847PWJ Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for PCA9847PWJ is 2.3V to 5.5V.
  • To ensure reliable communication, make sure to use a pull-up resistor on the SDA line, and ensure that the clock frequency is within the specified range (100 kHz to 400 kHz).
  • The PCA9847PWJ can sink or source up to 20mA of current per pin.
  • The PCA9847PWJ is configured for I2C-bus operation by default. To configure it for SMBus operation, connect the SMBus pin to VCC.
  • The reset pin (RST) is used to reset the PCA9847PWJ to its default state. It is active-low, meaning that it is triggered when the pin is pulled low.
