PCA9959HNMP - NXP

Description: LED Lighting Drivers I2C 5 V Constant Current LED Controller

Download PCA9959HNMP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

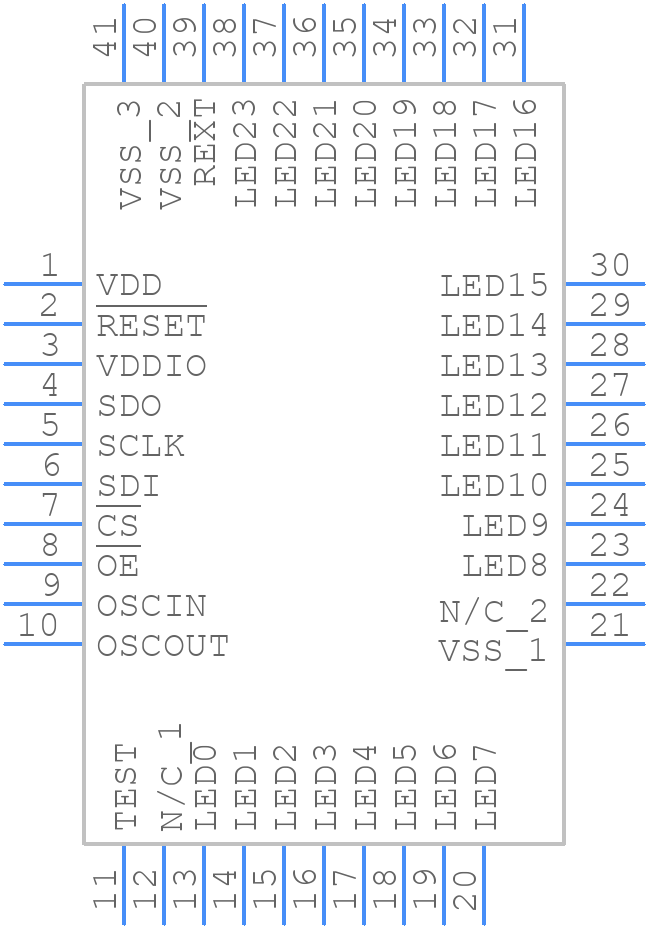

Symbol
PCA9959HNMP - NXP - PCB symbol
click to zoom
PCB Footprints
PCA9959HNMP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - PCA9959HNMP
click to zoom
3D Models
PCA9959HNMP - NXP - 3D model - Quad Flat No-Lead - PCA9959HNMP
click to zoom

PCA9959HNMP Details

  • Manufacturer Part Number:

    PCA9959HNMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-40

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    7.37

  • Data Input Mode:

    SERIAL

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LED DISPLAY DRIVER

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Multiplexed Display Capability:

    YES

  • Number of Functions:

    1

  • Number of Segments:

    24

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    CONSTANT-CURRENT

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.2SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.65 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    5.5 V

  • Supply Voltage1-Min:

    2.7 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • fmax-Min:

    23 MHz

PCA9959HNMP Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11559, which includes guidelines for component placement, routing, and grounding to minimize EMI.
  • To daisy-chain multiple PCA9959HNMP devices, connect the SDA and SCL pins of each device in series, and use the A0, A1, and A2 address pins to set a unique address for each device. Refer to the datasheet for more information on address pin configuration.
  • The maximum cable length for I2C communication with PCA9959HNMP depends on the clock frequency, cable capacitance, and noise environment. As a general guideline, NXP recommends keeping the cable length below 1 meter for 400 kHz I2C clock frequency. For longer cable lengths, consider using I2C bus repeaters or buffers.
  • To troubleshoot I2C communication issues with PCA9959HNMP, use a logic analyzer or oscilloscope to monitor the SDA and SCL signals. Check for proper signal levels, clock frequency, and data transmission. Verify that the I2C address is correctly set and that there are no bus conflicts. Refer to the datasheet and application notes for more troubleshooting tips.
  • No, PCA9959HNMP is designed to operate with a 1.8V to 3.6V power supply. Using a 5V power supply may damage the device. If you need to interface with a 5V system, consider using a level translator or voltage regulator to step down the voltage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCA9959HNMP Overview

Use the download button to access the PCA9959HNMP schematic symbol, PCB footprint, and 3D model.
