PCAL6534EVJ - NXP

Description: Interface - I/O Expanders ULV 34-bit Fm+, I2C- I/O Expander

Download PCAL6534EVJ Model
Schematic

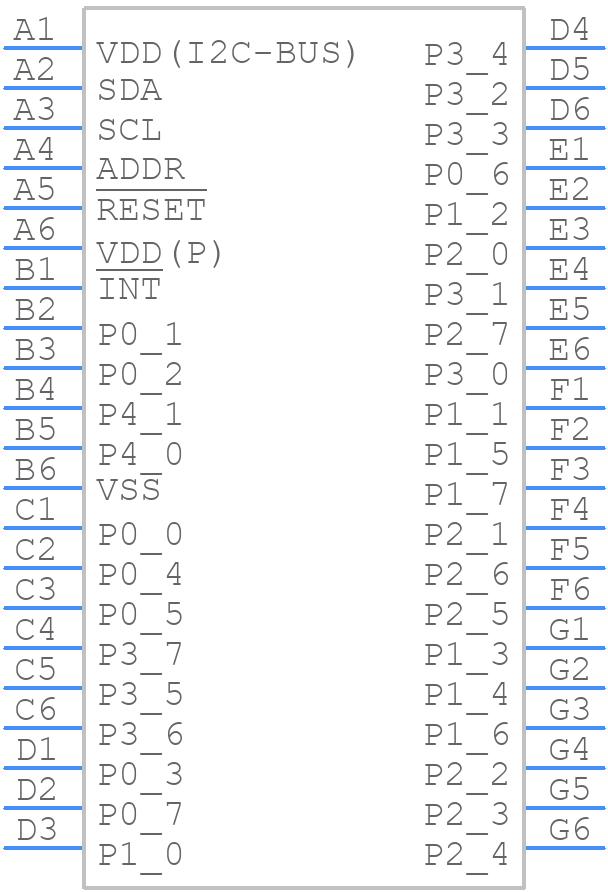

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PCAL6534EVJ - NXP PCB footprint - BGA - BGA - VFBGA42
click to zoom
3D Models
PCAL6534EVJ - NXP  - 3D model - BGA - VFBGA42
click to zoom

PCAL6534EVJ Details

  • Manufacturer Part Number:

    PCAL6534EVJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFBGA-42

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2019-01-29

  • Manufacturer:

    NXP Semiconductors

  • Clock Frequency-Max:

    1 MHz

  • JESD-30 Code:

    R-PBGA-B42

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    34

  • Number of I/O Lines:

    34

  • Number of Ports:

    5

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA42,6X7,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    0.625 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.6 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE
