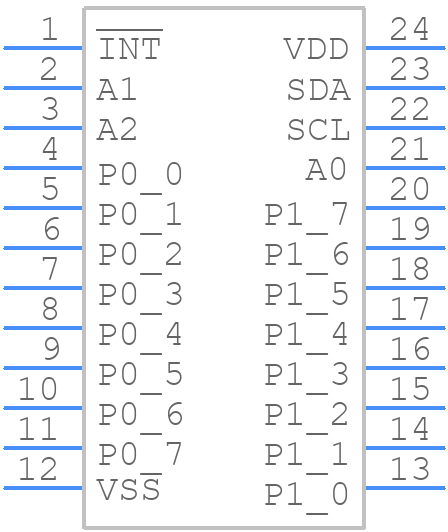

PCAL9555APW - NXP

PCAL9555APW Details

• Manufacturer Part Number:

  PCAL9555APW

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  4.40 MM, PLASTIC, MO-153, SOT355-1, TSSOP-24

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  7.58

• Clock Frequency-Max:

  0.4 MHz

• JESD-30 Code:

  R-PDSO-G24

• Length:

  7.8 mm

• Moisture Sensitivity Level:

  1

• Number of Bits:

  16

• Number of I/O Lines:

  16

• Number of Ports:

  2

• Number of Terminals:

  24

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.1 mm

• Supply Current-Max:

  200 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  1.65 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  4.4 mm

• uPs/uCs/Peripheral ICs Type:

  PARALLEL IO PORT, GENERAL PURPOSE
