PCAL9714HN/Q900MP - NXP

Description: Ultra low-voltage translating 14-bit SPI I/O expander with Agile I/O features, interrupt output, and reset, 25mA, -40°C ~ 125°C

Download PCAL9714HN/Q900MP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

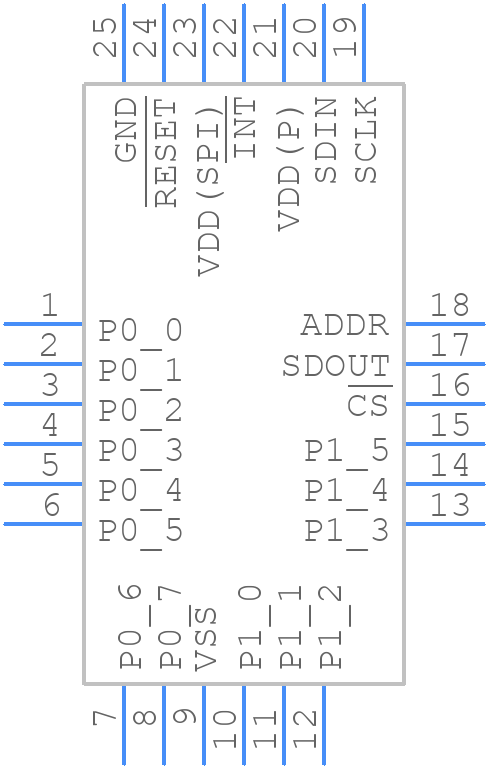

PCAL9714HN/Q900MP - NXP - PCB symbol
click to zoom
PCB Footprints
PCAL9714HN/Q900MP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT616-3_2025-1
click to zoom
3D Models
PCAL9714HN/Q900MP - NXP - 3D model - Quad Flat No-Lead - SOT616-3_2025-1
click to zoom

PCAL9714HN/Q900MP Details

  • Manufacturer Part Number:

    PCAL9714HN/Q900MP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCAL9714HN/Q900MP Overview

Use the download button to access the PCAL9714HN/Q900MP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCAL9, or try a keyword search, such as Parallel IO Ports
