PCAL9714HNMP - NXP

Description: SPI bus to parallel port expander • 5 MHz SPI bus • Operating power supply voltage range of 1.1 V to 5.5 V on the SPI bus side • Allows bidirectional voltage-level translation and GPIO expansion between 1.1 V to 5.5 V on SPI and 1.8 V, 2.5 V, 3.3 V or 5.5 V Port P • Low standby current consumption: 2.0 μA typical at 3.3 V VDD • 5.5 V tolerant I/O ports and SPI bus pins • Active LOW reset input (RESET) • Open-drain active LOW interrupt output (INT) • Internal power-on reset • Power-up with all chan

Download PCAL9714HNMP Model

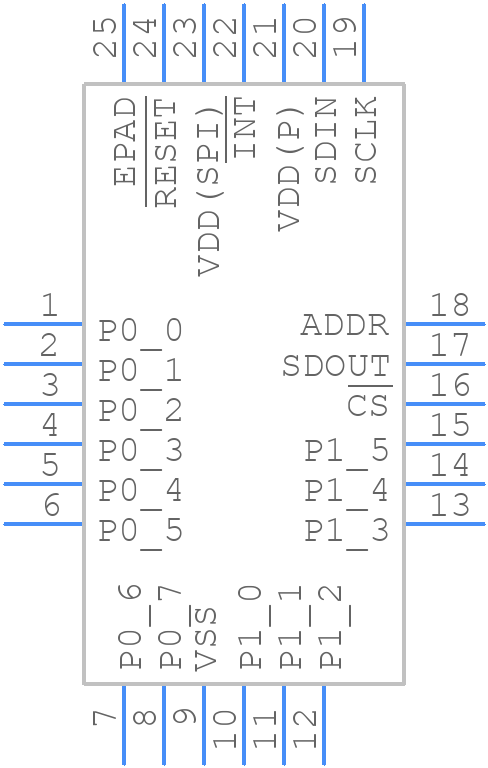

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
PCAL9714HNMP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN24a
click to zoom
3D Models
PCAL9714HNMP - NXP  - 3D model - Quad Flat No-Lead - HVQFN24a
click to zoom

PCAL9714HNMP Details

  • Manufacturer Part Number:

    PCAL9714HNMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    13

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

PCAL9714HNMP Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the application note AN11535, which includes guidelines for component placement, routing, and shielding to minimize EMI and noise.
  • To enable I2C bus stretching, set the STB bit in the Control Register (CR) to '1'. This allows the PCAL9714HNMP to stretch the clock signal during data transfer, enabling slower slaves to respond.
  • The maximum capacitance load for the PCAL9714HNMP's I2C bus is 400 pF. Exceeding this limit may cause signal integrity issues and affect the reliability of the I2C communication.
  • No, the PCAL9714HNMP is designed to operate with a 1.8V to 3.6V power supply. Using a 5V power supply may damage the device or affect its performance.
  • The PCAL9714HNMP can be reset by asserting the RESET pin low for at least 1 ms. This resets the device to its default state and clears all registers.
