PCAL9722HN/Q900MP - NXP

Description: Interface - I/O Expanders Low-voltage translating 22-bit SPI I/O expander - AEC_Q100 compliant

Download PCAL9722HN/Q900MP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

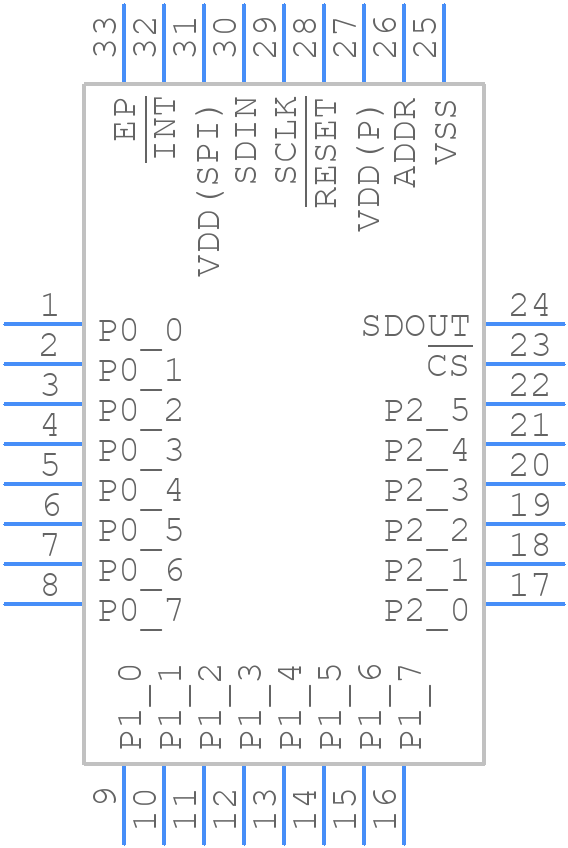

PCAL9722HN/Q900MP - NXP - PCB symbol
click to zoom
PCB Footprints
PCAL9722HN/Q900MP - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN32.
click to zoom
3D Models
PCAL9722HN/Q900MP - NXP - 3D model - Quad Flat No-Lead - HVQFN32.
click to zoom

PCAL9722HN/Q900MP Details

  • Manufacturer Part Number:

    PCAL9722HN/Q900MP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQFN-32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • Clock Frequency-Max:

    5 MHz

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    22

  • Number of I/O Lines:

    22

  • Number of Ports:

    3

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.85 mm

  • Supply Current-Max:

    0.75 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

PCAL9722HN/Q900MP Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the PCAL9722HN/Q900MP application note (AN11542). It's essential to follow the guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The PCAL9722HN/Q900MP can be configured for I2C or SPI interface through the MODE pin. For I2C, connect the MODE pin to VCC, and for SPI, connect it to GND. Additionally, the device requires specific register settings for each interface, which can be found in the datasheet and application notes.
  • The PCAL9722HN/Q900MP can operate up to 100 MHz, but the maximum frequency depends on the specific application and system design. It's essential to consider factors like signal integrity, power consumption, and thermal management when operating at higher frequencies.
  • The PCAL9722HN/Q900MP has a thermal pad that must be connected to a thermal ground plane on the PCB to ensure proper heat dissipation. NXP recommends using a thermal interface material (TIM) and a heat sink if necessary, depending on the application's power consumption and operating conditions.
  • The PCAL9722HN/Q900MP requires a specific power-up and power-down sequencing to ensure proper operation and prevent damage. The datasheet provides guidelines for power sequencing, and it's essential to follow these recommendations to avoid issues like latch-up or damage to the device.
