PCAN2512E49R9BST5 - Vishay

Description: Thin Film Resistors - SMD 6 Watt 49.9ohm 25ppm 0.1% 2512 SMD

Download PCAN2512E49R9BST5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCAN2512E49R9BST5 - Vishay - PCB symbol
click to zoom
PCB Footprints

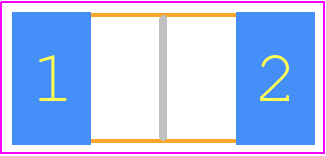

PCAN2512E49R9BST5 - Vishay PCB footprint - Resistor Chip - Resistor Chip - PCAN2512-ren1
click to zoom
3D Models
PCAN2512E49R9BST5 - Vishay - 3D model - Resistor Chip - PCAN2512-ren1
click to zoom

PCAN2512E49R9BST5 Details

  • Manufacturer Part Number:

    PCAN2512E49R9BST5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.21.00.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    10

  • Additional Feature:

    FLAME PROOF, PRECISION

  • Construction:

    Rectangular

  • JESD-609 Code:

    e1

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    0.381 mm

  • Package Length:

    6.5786 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SMT

  • Package Width:

    3.1496 mm

  • Packing Method:

    TR

  • Rated Power Dissipation (P):

    6 W

  • Rated Temperature:

    70 °C

  • Resistance:

    49.9 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Size Code:

    2512

  • Surface Mount:

    YES

  • Technology:

    THIN FILM

  • Temperature Coefficient:

    25 ppm/°C

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Shape:

    WRAPAROUND

  • Tolerance:

    0.1%

  • Working Voltage:

    100 V

PCAN2512E49R9BST5 Frequently Asked Questions (FAQs)

  • The recommended land pattern for PCAN2512E49R9BST5 is a rectangular pad with a size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape.
  • To handle thermal considerations, ensure a good thermal connection to a heat sink or a thermal pad, and follow the recommended thermal management guidelines in the datasheet.
  • The maximum operating temperature range for PCAN2512E49R9BST5 is -55°C to +150°C, but the recommended operating temperature range is -40°C to +125°C.
  • To ensure reliability, follow the recommended storage and handling guidelines, and perform thorough testing and validation according to the application requirements.
  • Handle the device with ESD-protective equipment, and follow the recommended ESD protection guidelines to prevent damage during handling and assembly.
