PCAP02AE - ScioSense

Description: Capacitance-to-Digital Converter 500k I²C, SPI 32-QFN (5x5)

Download PCAP02AE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

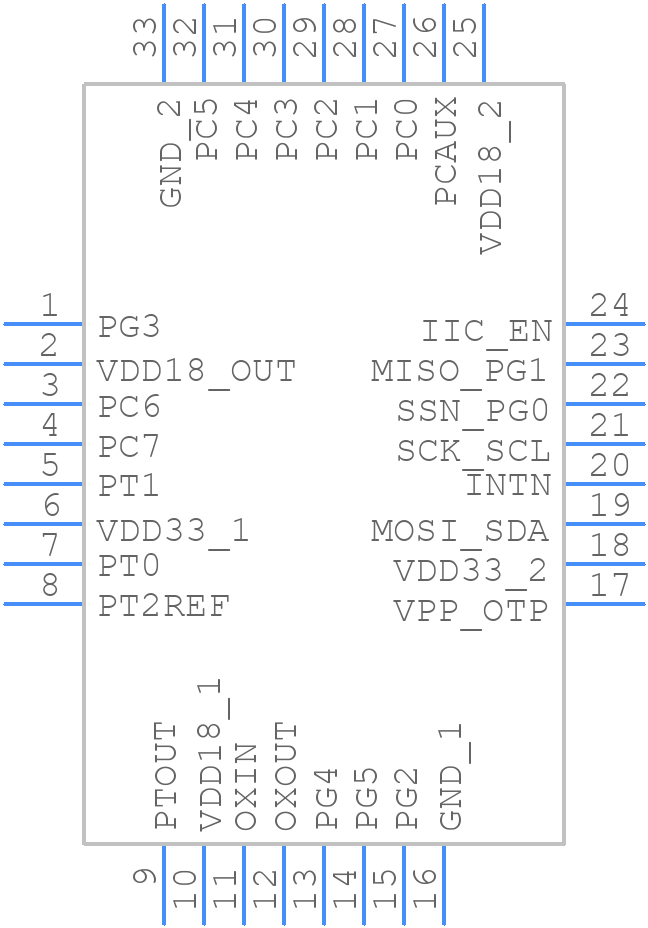

PCAP02AE - ScioSense - PCB symbol
click to zoom
PCB Footprints
PCAP02AE - ScioSense PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32
click to zoom
3D Models
PCAP02AE - ScioSense - 3D model - Quad Flat No-Lead - QFN-32
click to zoom

PCAP02AE Details

  • Manufacturer Part Number:

    PCAP02AE

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    QFN-32

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    ScioSense

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC32(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.1 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

PCAP02AE Frequently Asked Questions (FAQs)

  • A symmetrical layout with a solid ground plane and a 50-ohm transmission line is recommended for optimal performance. The sensor should be placed at least 1 mm away from any nearby components or PCB edges.
  • Calibration involves applying a known pressure and measuring the corresponding output voltage. The sensor should be calibrated in a controlled environment with minimal temperature and humidity variations. A calibration curve can be generated by plotting the output voltage against the applied pressure.
  • The recommended power-on sequence is to first apply the analog supply voltage (VCC) and then the digital supply voltage (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To minimize EMI, use a shielded cable to connect the sensor to the evaluation board or microcontroller. Additionally, ensure that the sensor is placed at least 10 mm away from any high-frequency components or antennas.
  • The maximum operating temperature range for PCAP02AE is -20°C to 85°C. Operating the sensor outside this range may affect its accuracy and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCAP02AE Overview

Use the download button to access the PCAP02AE schematic symbol, PCB footprint, and 3D model.
