PCB-B-24-T-25 footprint, schematic symbol and 3D model by Adam Tech

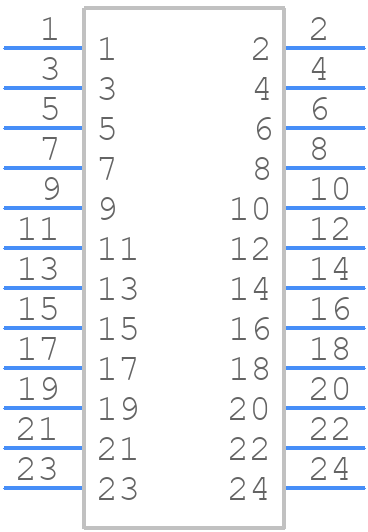

Symbol

click to zoom

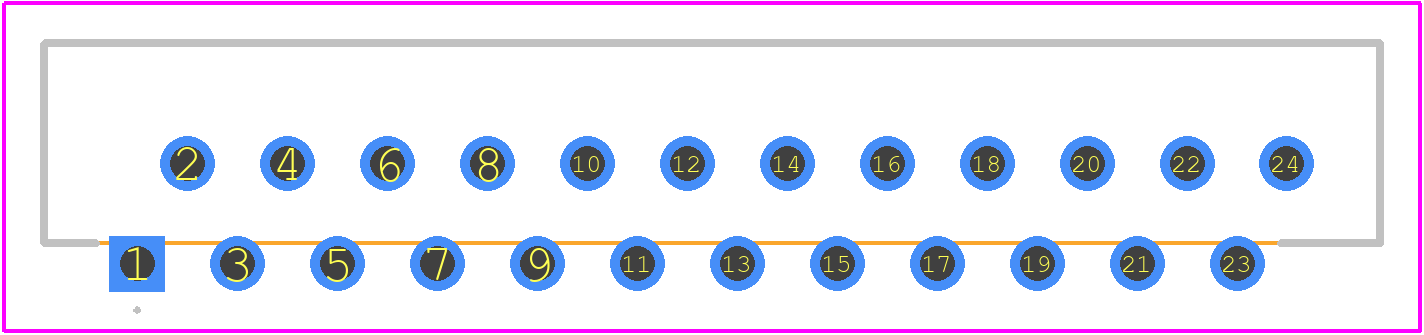

PCB Footprints

PCB-B-24-T-25 - Adam Tech PCB footprint - Other - Other - PCB-B-24-T-25-1

click to zoom

3D Models

PCB-B-24-T-25 - Adam Tech - 3D model - Other - PCB-B-24-T-25-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCB-B-24-T-25
Part Number PCB-B-24-T-25
Manufacturer Adam Tech
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - PCB-B-24-T-25-1
Released Date Aug 28, 2025
Last Modified Date Aug 28, 2025 7:16 AM UTC
Pinout / Pin List Click Here (Member Only)

PCB-B-24-T-25 Details

Manufacturer Part Number:
PCB-B-24-T-25
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
Manufacturer:
Adam Technologies Inc
YTEOL:
6
Body Breadth:
0.197 inch
Body Depth:
0.315 inch
Body Length:
1.31 inch
Connector Type:
FFC/FPC CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
25 mΩ
Contact Style:
BELLOWED TYPE
Dielectric Withstanding Voltage:
500VAC V
Filter Feature:
NO
Insertion Force-Max:
LIF N
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch:
0.049 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.5 mm
Rated Current (Signal):
1 A
Reference Standard:
UL
Terminal Length:
0.137 inch
Terminal Pitch:
2.5 mm
Termination Type:
SOLDER
Total Number of Contacts:
24
UL Flammability Code:
94V-0
Withdrawl Force-Min:
LIF N

PCB-B-24-T-25 Frequently Asked Questions (FAQs)

The recommended storage condition for PCB-B-24-T-25 is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
While the PCB-B-24-T-25 is designed to be rugged, it's not specifically designed for high-vibration applications. However, it can withstand moderate vibrations. For high-vibration applications, it's recommended to consult with Adam Technologies Inc or perform additional testing to ensure reliability.
The maximum operating temperature for PCB-B-24-T-25 is 85°C (185°F). However, it's recommended to operate within the recommended temperature range of -20°C to 70°C (-4°F to 158°F) for optimal performance and reliability.
While the PCB-B-24-T-25 has some level of moisture resistance, it's not designed for use in wet or submerged environments. If you need to use it in a humid environment, ensure the humidity level is below 60% and take necessary precautions to prevent moisture ingress.
The recommended soldering temperature for PCB-B-24-T-25 is between 230°C to 250°C (446°F to 482°F) for a maximum of 3 seconds. Exceeding this temperature or time may damage the component.

Trust Checks

Community Provided

System Verified

Community Approved

PCB-B-24-T-25 Overview

Use the download button to access the PCB-B-24-T-25 schematic symbol, PCB footprint, and 3D model.
