PCF-124D2M,000 - TE Connectivity

Description: General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole

Download PCF-124D2M,000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCF-124D2M,000 - TE Connectivity - PCB symbol
click to zoom

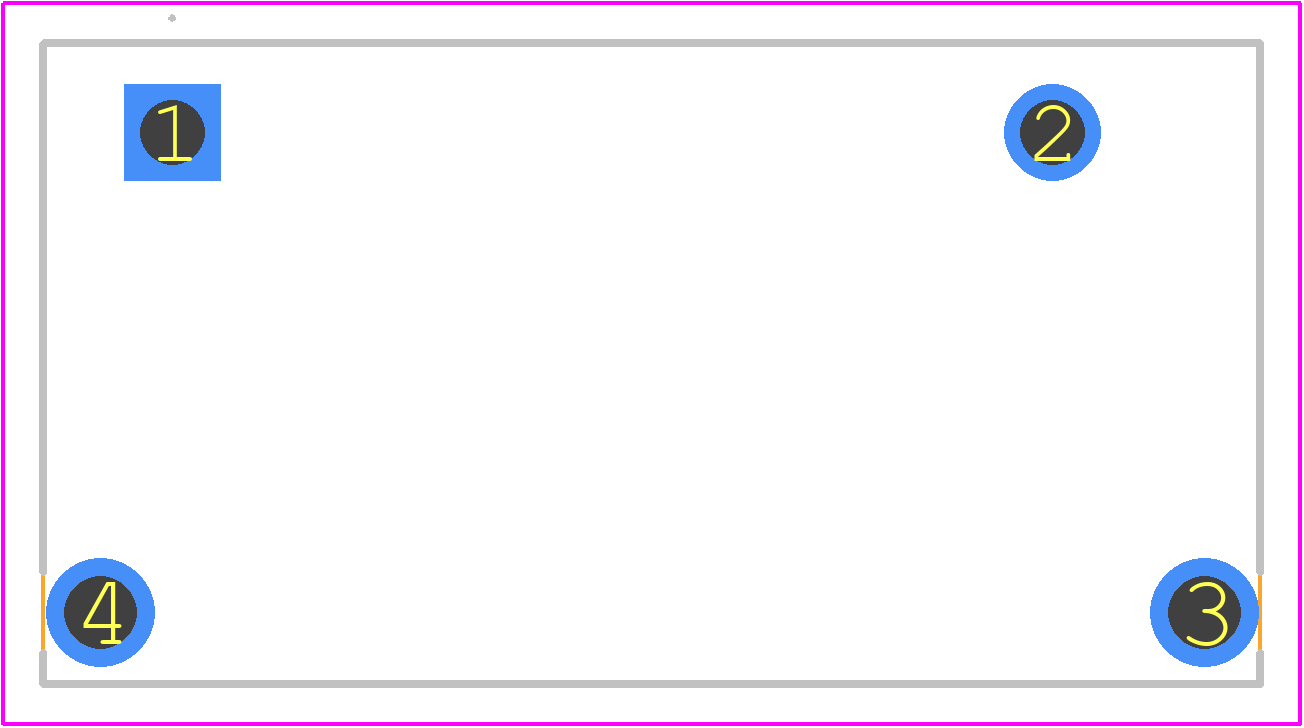

PCB Footprints
PCF-124D2M,000 - TE Connectivity PCB footprint - Other - Other - PCF-124D2M,000-3
click to zoom
3D Models
PCF-124D2M,000 - TE Connectivity - 3D model - Other - PCF-124D2M,000-3
click to zoom

PCF-124D2M,000 Details

  • Manufacturer Part Number:

    PCF-124D2M,000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Body Breadth:

    16 mm

  • Body Height:

    26.5 mm

  • Body Length or Diameter:

    30.4 mm

  • Coil Current(DC)-Max:

    0.038 A

  • Coil Power:

    900 mW

  • Coil Resistance:

    640 Ω

  • Coil Voltage(DC)-Max:

    24 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    25 A

  • Contact Current(DC)-Max:

    25 A

  • Contact Voltage(AC)-Max:

    277 V

  • Contact Voltage(DC)-Max:

    24 V

  • Contact/Output Supply Type:

    AC/DC

  • End Contact Material:

    SILVER TIN ALLOY

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    55 °C

  • Operating Temperature-Min:

    -30 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    30.4mm x 16mm x 26.5mm

  • Reference Standard:

    CSA; TUV; UL

  • Relay Action:

    MOMENTARY

  • Relay Form:

    1 FORM A

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

PCF-124D2M,000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of PCF-124D2M,000 is 0.5 Nm to 1.5 Nm. It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, PCF-124D2M,000 is designed to withstand high-vibration environments. The connector's rugged design and secure screw terminals ensure reliable connections even in applications with intense vibrations.
  • Yes, PCF-124D2M,000 meets the requirements for automotive applications. It's designed to operate in harsh environments and meets the necessary standards for temperature, vibration, and reliability.
  • The maximum operating temperature for PCF-124D2M,000 is 125°C. However, it's essential to note that the connector's performance may degrade at temperatures above 100°C, and it's recommended to derate the current accordingly.
  • PCF-124D2M,000 is designed to operate in humid environments, but it's not intended for submerged or wet applications. If you need to use the connector in wet environments, consider using additional sealing or protective measures to ensure reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCF-124D2M,000 Overview

Use the download button to access the PCF-124D2M,000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCF-1, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
