The recommended land pattern for PCF1C102K is a rectangular pad with a size of 2.5mm x 1.25mm, with a non-solder mask defined (NSMD) pad shape. This ensures proper soldering and minimizes the risk of solder bridging.
Yes, PCF1C102K is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the operating conditions do not exceed the maximum ratings specified in the datasheet.
To prevent damage, handle PCF1C102K by the edges or use a vacuum pickup tool to avoid applying pressure or stress to the component. Avoid bending, flexing, or twisting the component, as this can cause internal damage or cracking.
The recommended soldering profile for PCF1C102K is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's essential to follow a controlled soldering process to prevent overheating or thermal shock, which can damage the component.
PCF1C102K is not hermetically sealed, so it's not recommended for use in humid or moist environments. If exposure to moisture is unavoidable, consider using a conformal coating or potting compound to protect the component.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCF1C102K Overview

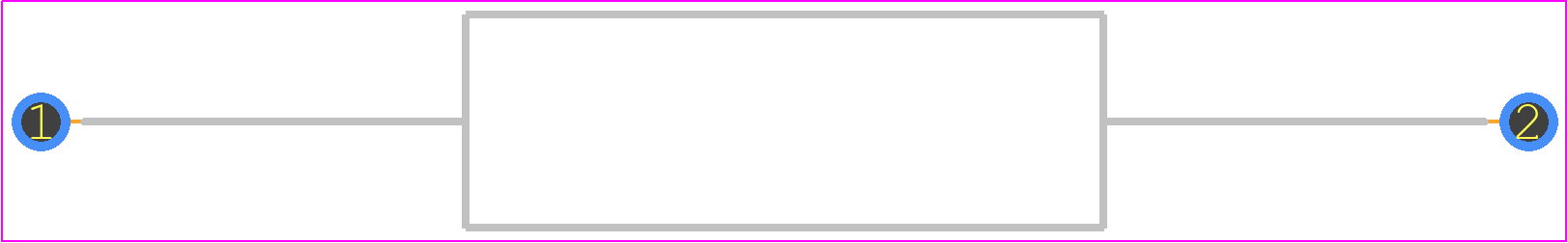

Use the download button to access the PCF1C102K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCF1C,
or try a keyword search, such as Other Resistors
