Part Image

PCF2111CT/1,118 - NXP

Description: Segment Display LCD Driver 2.5V/3.3V/5V 40-Pin VSO T/R

Download PCF2111CT/1,118 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

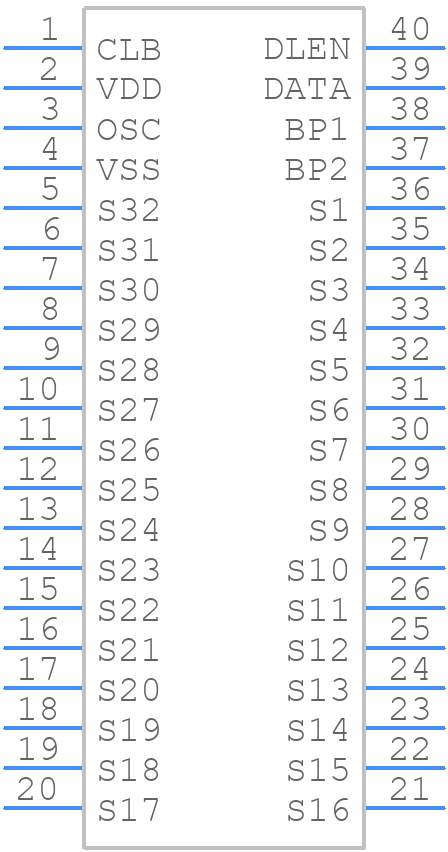

Symbol
PCF2111CT/1,118 - NXP - PCB symbol
click to zoom
PCB Footprints
PCF2111CT/1,118 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT158-1
click to zoom
3D Models
PCF2111CT/1,118 - NXP - 3D model - Small Outline Packages - SOT158-1
click to zoom

PCF2111CT/1,118 Details

  • Manufacturer Part Number:

    PCF2111CT/1,118

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    VSOP

  • Package Description:

    VSO-40

  • Pin Count:

    40

  • Manufacturer Package Code:

    SOT158-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Data Input Mode:

    SERIAL

  • Display Mode:

    DOT MATRIX

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LIQUID CRYSTAL DISPLAY DRIVER

  • JESD-30 Code:

    R-PDSO-G40

  • JESD-609 Code:

    e3

  • Length:

    15.4 mm

  • Moisture Sensitivity Level:

    1

  • Multiplexed Display Capability:

    YES

  • Number of Functions:

    1

  • Number of Segments:

    32

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.7 mm

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max:

    6 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    6 V

  • Supply Voltage1-Min:

    2.25 V

  • Supply Voltage1-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.762 mm

  • Terminal Position:

    DUAL

  • Width:

    7.55 mm

  • fmax-Min:

    0.1 MHz

PCF2111CT/1,118 Frequently Asked Questions (FAQs)

  • A good PCB layout for the PCF2111CT involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the IC and the crystal oscillator. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the internal oscillator is stable and accurate, it's essential to use a high-quality crystal oscillator with a suitable load capacitance, and to follow the recommended PCB layout guidelines. Additionally, the oscillator circuit should be decoupled from the power supply using a 10nF capacitor.
  • The maximum allowed voltage on the PCF2111CT's input pins is VDD + 0.5V. Exceeding this voltage may cause damage to the device.
  • The PCF2111CT's POR and BOD features can be handled by connecting the POR pin to VDD through a resistor and capacitor, and by setting the BOD threshold voltage using the BODLEVEL[1:0] bits in the RSTCTRL register.
  • The recommended method for programming the PCF2111CT's internal flash memory is to use a programming tool such as the NXP Flash Programmer or a third-party tool that supports the PCF2111CT. It's essential to follow the programming guidelines and protocols outlined in the datasheet to avoid damaging the device.
