PCF85053ATKJ - NXP

Description: Real Time Clock Bootable CPU RTC with dual I2C interface, 128-byte SRAM and alarm function

Download PCF85053ATKJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

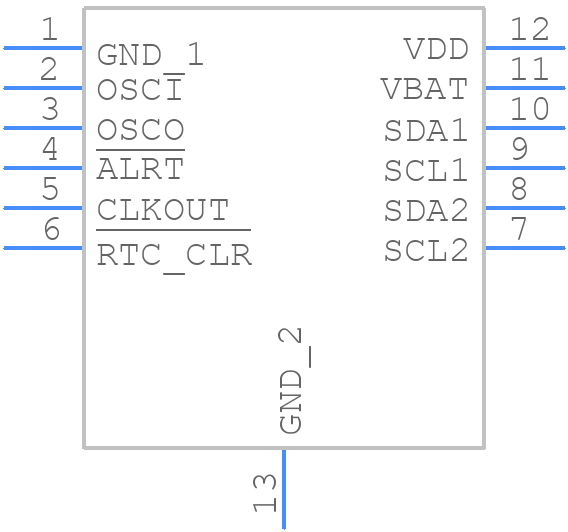

PCF85053ATKJ - NXP - PCB symbol
click to zoom
PCB Footprints
PCF85053ATKJ - NXP PCB footprint - Small Outline No-lead - Small Outline No-lead - SOT2143-1
click to zoom
3D Models
PCF85053ATKJ - NXP - 3D model - Small Outline No-lead - SOT2143-1
click to zoom

PCF85053ATKJ Details

  • Manufacturer Part Number:

    PCF85053ATKJ

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.2 V

  • Supply Voltage-Nom:

    3.3 V

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

PCF85053ATKJ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD first, followed by VBAT. This ensures that the internal voltage regulator is enabled before the battery voltage is applied.
  • To configure the PCF85063ATKJ for a 12-hour clock format, set the 12/24 hour mode bit (bit 6 of register 0x02) to 0. This will enable the 12-hour clock format with AM/PM indication.
  • The RST pin is an active-low reset input that resets the device when pulled low. It can be used to reset the device to its default state or to recover from a fault condition.
  • The clock data can be read from the PCF85063ATKJ by accessing the time and date registers (registers 0x00 to 0x07) through the I2C interface. The data is stored in BCD format and must be converted to binary format for use in the application.
  • The typical current consumption of the PCF85063ATKJ is around 0.5 μA in standby mode and 1.5 μA in active mode, depending on the operating frequency and other factors.
