PCF85063ATT/AJ - NXP

Description: Real Time Clock Low Power Real time clocks

Download PCF85063ATT/AJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

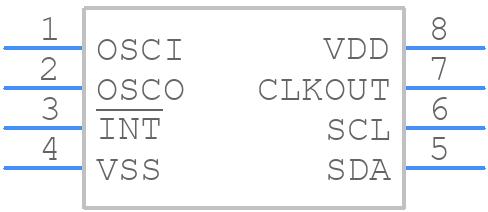

Symbol
PCF85063ATT/AJ - NXP - PCB symbol
click to zoom
PCB Footprints
PCF85063ATT/AJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - SOT505-1 (TSSOP8) of PCF85063ATT
click to zoom
3D Models
PCF85063ATT/AJ - NXP - 3D model - Small Outline Packages - SOT505-1 (TSSOP8) of PCF85063ATT
click to zoom

PCF85063ATT/AJ Details

  • Manufacturer Part Number:

    PCF85063ATT/AJ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT505-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    5

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    0.9 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

PCF85063ATT/AJ Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDD first, followed by VBAT. This ensures that the internal voltage regulator is enabled before the battery voltage is applied.
  • The oscillator frequency can be configured by selecting the appropriate values for the XT1 and XT2 pins, and by programming the OSCCTRL register. Refer to the datasheet for the specific configuration options.
  • The VBAT pin is used to connect a battery or a supercapacitor to the device. It should be connected to a battery or a supercapacitor with a voltage range of 2.5V to 5.5V, and should not be connected to a voltage source that exceeds the maximum rating of the device.
  • To use the PCF85063ATT/AJ as an RTC in battery-backed mode, connect a battery or a supercapacitor to the VBAT pin, and configure the device to use the battery-backed oscillator. The device will automatically switch to the battery-backed oscillator when the main power supply (VDD) is removed.
  • The maximum frequency of the clock output on the CLKOUT pin is 32.768 kHz, which is the frequency of the internal oscillator.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCF85063ATT/AJ Overview

Use the download button to access the PCF85063ATT/AJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCF85, or try a keyword search, such as Timers or RTCs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
