PCF85263AT/AJ - NXP

Description: NXP - PCF85263AT/AJ - Calendar, Clock IC, Format (YYYY:MM:WK:DD:hh:mm:ss/Binary), I2C, 900 mV to 5.5 V supply, SOIC-8

Download PCF85263AT/AJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

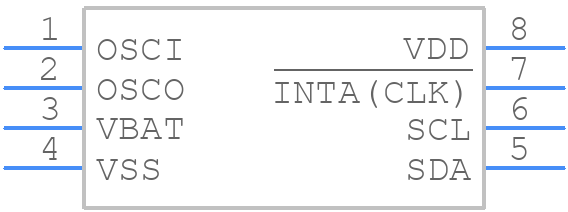

PCF85263AT/AJ - NXP - PCB symbol
click to zoom
PCB Footprints
PCF85263AT/AJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - so8-
click to zoom
3D Models
PCF85263AT/AJ - NXP - 3D model - Small Outline Packages - so8-
click to zoom

PCF85263AT/AJ Details

  • Manufacturer Part Number:

    PCF85263AT/AJ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT96-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    13

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

PCF85263AT/AJ Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the PCF85263AT/AJ is 32.768 kHz.
  • To configure the PCF85263AT/AJ for battery-backed mode, connect a battery to the VBAT pin and ensure that the VCC pin is connected to a power source. The device will automatically switch to battery-backed mode when the VCC pin is powered down.
  • The maximum clock frequency for the I2C interface of the PCF85263AT/AJ is 400 kHz.
  • To reset the PCF85263AT/AJ to its default settings, apply a low pulse to the RST pin for at least 1 ms.
  • The operating temperature range of the PCF85263AT/AJ is -40°C to +85°C.
