PCF85263ATT/AJ - NXP

Description: NXP - PCF85263ATT/AJ - Calendar, Clock IC, Format (YYYY:MM:WK:DD:hh:mm:ss/Binary), I2C, 900 mV to 5.5 V supply, TSSOP-8

Download PCF85263ATT/AJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

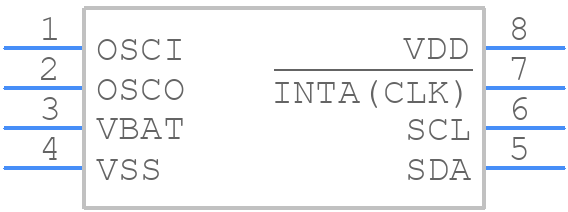

Symbol
PCF85263ATT/AJ - NXP - PCB symbol
click to zoom
PCB Footprints
PCF85263ATT/AJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP8
click to zoom
3D Models
PCF85263ATT/AJ - NXP - 3D model - Small Outline Packages - TSSOP8
click to zoom

PCF85263ATT/AJ Details

  • Manufacturer Part Number:

    PCF85263ATT/AJ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    8

  • Manufacturer Package Code:

    SOT505-1

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    13

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

PCF85263ATT/AJ Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the PCF85263ATT/AJ is 32.768 kHz.
  • To configure the PCF85263ATT/AJ for battery-backed mode, connect a battery to the VBAT pin and ensure that the VCC pin is connected to a power source. The device will automatically switch to battery-backed mode when the VCC pin is powered down.
  • The maximum clock frequency for the PCF85263ATT/AJ is 32 kHz.
  • The PCF85263ATT/AJ can be reset by pulling the RST pin low for at least 1 ms. This will reset the device and clear all registers.
  • The CAL pin is used to calibrate the internal oscillator of the PCF85263ATT/AJ. It is used to adjust the oscillator frequency to match the crystal oscillator frequency.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

PCF85263ATT/AJ Overview

Use the download button to access the PCF85263ATT/AJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCF85, or try a keyword search, such as Timers or RTCs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
