PCF85263ATT1/AJ - NXP

Description: Tiny Real-Time Clock/calendar with alarm functoin,battery switch-over ,time stamp input, and I2C-bus

Download PCF85263ATT1/AJ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

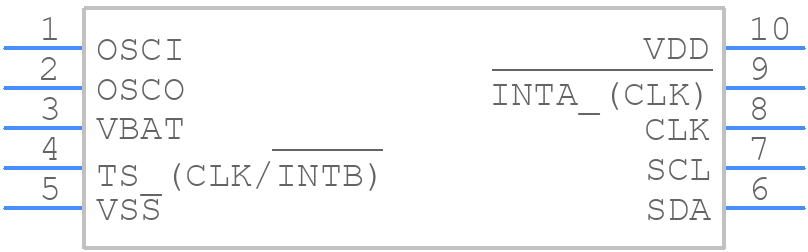

PCF85263ATT1/AJ - NXP - PCB symbol
click to zoom
PCB Footprints
PCF85263ATT1/AJ - NXP PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP10
click to zoom
3D Models
PCF85263ATT1/AJ - NXP - 3D model - Small Outline Packages - TSSOP10
click to zoom

PCF85263ATT1/AJ Details

  • Manufacturer Part Number:

    PCF85263ATT1/AJ

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Pin Count:

    10

  • Manufacturer Package Code:

    SOT552-1

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

PCF85263ATT1/AJ Frequently Asked Questions (FAQs)

  • The recommended crystal oscillator frequency for the PCF85263ATT1/AJ is 32.768 kHz.
  • To configure the PCF85263ATT1/AJ for battery-backed operation, connect a battery to the VBAT pin and ensure that the VCC pin is connected to a power source. The device will automatically switch to battery power when the VCC pin is powered down.
  • The maximum operating temperature range for the PCF85263ATT1/AJ is -40°C to +85°C.
  • The PCF85263ATT1/AJ can be reset by pulling the RST pin low for at least 1 ms. This will reset the device and clear all registers.
  • The CAL pin is used to calibrate the internal oscillator. It can be connected to a capacitor to adjust the oscillator frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCF85263ATT1/AJ Overview

Use the download button to access the PCF85263ATT1/AJ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCF85, or try a keyword search, such as Timers or RTCs
