PCF8563T/5 - NXP

Description: NXP Semiconductors PCF8563T/SO8//5/REEL 13 Q1/T1 *STANDARD MARK SMD

Download PCF8563T/5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

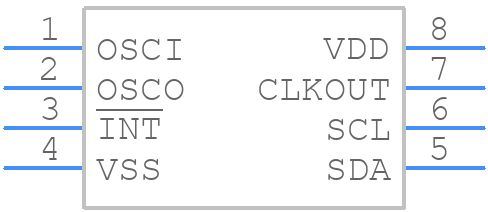

Symbol
PCF8563T/5 - NXP - PCB symbol
click to zoom
PCB Footprints
PCF8563T/5 - NXP PCB footprint - Small Outline Packages - Small Outline Packages - Package outline SOT96-1 (SO8)
click to zoom
3D Models
PCF8563T/5 - NXP - 3D model - Small Outline Packages - Package outline SOT96-1 (SO8)
click to zoom

PCF8563T/5 Details

  • Manufacturer Part Number:

    PCF8563T/5

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    3.90 MM, PLASTIC, MO-012, SOT96-1, SO-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Clock Frequency-Max:

    0.032 MHz

  • Information Access Method:

    SERIAL(I2C)

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    1.8 V

  • Supply Voltage-Nom:

    2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    TIMER, REAL TIME CLOCK

PCF8563T/5 Frequently Asked Questions (FAQs)

  • The PCF8563T/5 can handle a maximum clock frequency of 32.768 kHz, which is the typical frequency for a quartz crystal oscillator.
  • To configure the PCF8563T/5 to generate an interrupt on a specific event, you need to set the corresponding interrupt enable bit in the Interrupt Enable Register (IER) and configure the event trigger in the Event Control Register (ECR).
  • The VBAT pin is used to connect a battery or a supercapacitor to the PCF8563T/5, which allows the device to maintain its internal clock and calendar information during power failures or when the main power supply is turned off.
  • To reset the PCF8563T/5 to its default state, you need to assert the RESET pin low for at least 1 ms. This will reset all registers to their default values and clear any pending interrupts.
  • The internal oscillator on the PCF8563T/5 has an accuracy of ±10% over the entire operating temperature range of -40°C to 85°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCF8563T/5 Overview

Use the download button to access the PCF8563T/5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCF85, or try a keyword search, such as Timers or RTCs

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
