The recommended POR timing is a minimum of 1ms to ensure that the internal oscillator is stable and the device is properly initialized.
The clock calibration process involves writing a correction value to the CAL register (0x08). The correction value is calculated based on the deviation of the internal oscillator from the nominal frequency. The datasheet provides a formula to calculate the correction value.
The VBAT pin is used to connect a battery or a supercapacitor to provide backup power to the device during power failures. This allows the device to maintain its internal clock and retain its settings.
To configure the PCF8563TD to generate an alarm interrupt, you need to set the alarm registers (0x09-0x0C) to the desired alarm time, enable the alarm interrupt by setting the AIE bit in the control register (0x07), and configure the interrupt pin (INT) as an output.
The maximum frequency of the clock output on the PCF8563TD is 32.768 kHz, which is the nominal frequency of the internal oscillator.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCF8563TD Overview

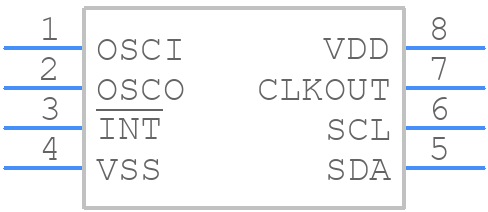

Use the download button to access the PCF8563TD schematic symbol, PCB footprint, and 3D model.
