PCF8566T/1,112 - NXP

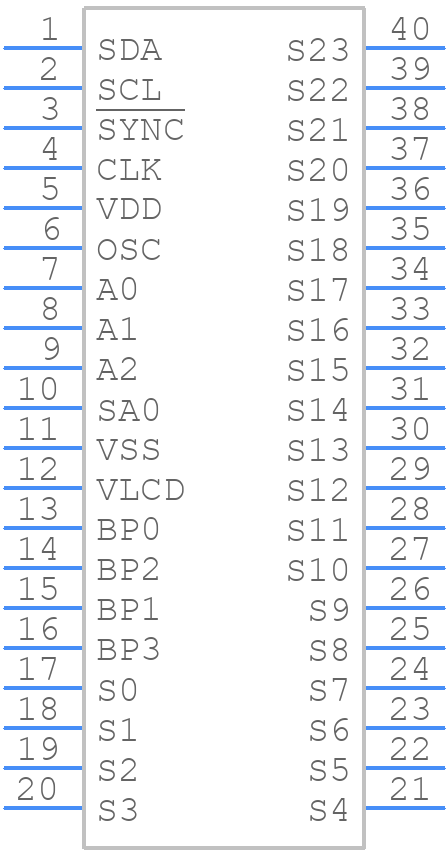

PCF8566T/1,112 Details

• Manufacturer Part Number:

  PCF8566T/1,112

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  VSOP

• Package Description:

  VSOP-40

• Pin Count:

  40

• Manufacturer Package Code:

  SOT158-1

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Data Input Mode:

  SERIAL

• Display Mode:

  SEGMENT

• Input Characteristics:

  STANDARD

• Interface IC Type:

  LIQUID CRYSTAL DISPLAY DRIVER

• JESD-30 Code:

  R-PDSO-G40

• JESD-609 Code:

  e3

• Length:

  15.4 mm

• Multiplexed Display Capability:

  YES

• Number of Digits/Characters:

  12-DIGIT

• Number of Functions:

  1

• Number of Segments:

  24

• Number of Terminals:

  40

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SOP40,.5,30

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.7 mm

• Supply Current-Max:

  0.09 mA

• Supply Voltage-Max:

  6 V

• Supply Voltage-Min:

  2.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  3.5 V

• Supply Voltage1-Min:

  -3.5 V

• Supply Voltage1-Nom:

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.762 mm

• Terminal Position:

  DUAL

• Width:

  7.55 mm

• fmax-Min:

  0.315 MHz
