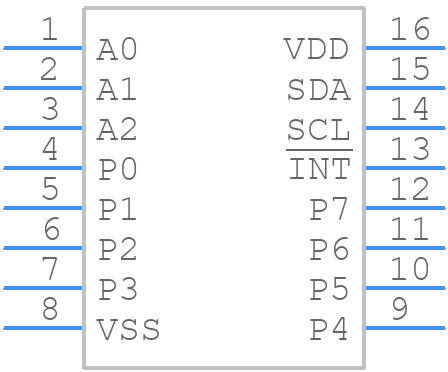

PCF8574AT/3,518 - NXP

PCF8574AT/3,518 Details

• Manufacturer Part Number:

  PCF8574AT/3,518

• Brand Name:

  NXP Semiconductor

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOP

• Package Description:

  SO-16

• Pin Count:

  16

• Manufacturer Package Code:

  SOT162-1

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Clock Frequency-Max:

  0.1 MHz

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  2

• Number of Bits:

  8

• Number of I/O Lines:

  8

• Number of Ports:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  100 mA

• Supply Voltage-Max:

  6 V

• Supply Voltage-Min:

  2.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm

• uPs/uCs/Peripheral ICs Type:

  PARALLEL IO PORT, GENERAL PURPOSE
