PCF8574PN - NXP

PCF8574PN Details

• Manufacturer Part Number:

  PCF8574PN

• Source Url Status Check Date:

  2013-06-14 00:00:00

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

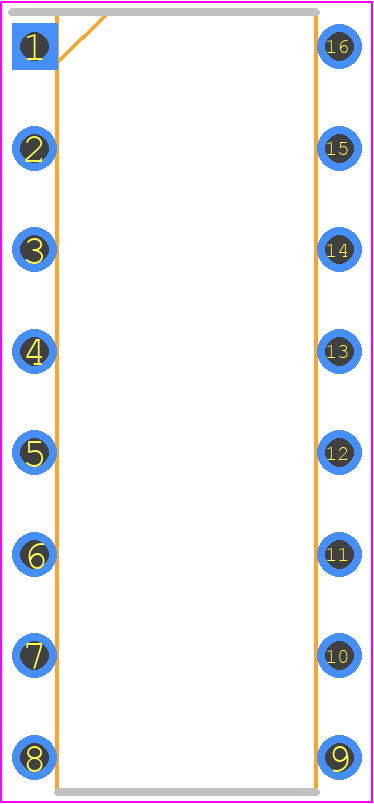

• Package Description:

  0.300 INCH, LEAD FREE, PLASTIC, SOT-38-4, DIP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Clock Frequency-Max:

  0.1 MHz

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  19.025 mm

• Number of Bits:

  8

• Number of I/O Lines:

  8

• Number of Ports:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.2 mm

• Supply Current-Max:

  0.1 mA

• Supply Voltage-Max:

  6 V

• Supply Voltage-Min:

  2.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.62 mm

• uPs/uCs/Peripheral ICs Type:

  PARALLEL IO PORT, GENERAL PURPOSE
