Part Image

PCI11414C/PMX - Microchip

Description: PCI Interface IC PCIe Switch, USB Host, Quad UART, Networking +3.3V and +1.1V -40°C to +85°C

Download PCI11414C/PMX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
PCI11414C/PMX - Microchip - PCB symbol
click to zoom
PCB Footprints

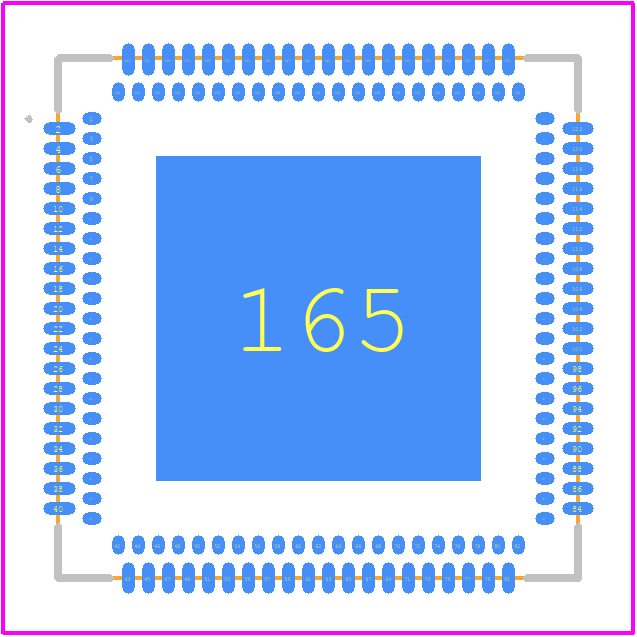

PCI11414C/PMX - Microchip PCB footprint - Other - Other - 164-Lead Very Thin Plastic Quad Flat, No Lead Package (PMX) - 13x13x0.9 mm Body [VQFN]_2026-1.1
click to zoom
3D Models
PCI11414C/PMX - Microchip - 3D model - Other - 164-Lead Very Thin Plastic Quad Flat, No Lead Package (PMX) - 13x13x0.9 mm Body [VQFN]_2026-1.1
click to zoom

PCI11414C/PMX Details

  • Manufacturer Part Number:

    PCI11414C/PMX

  • Manufacturer:

    Microchip Technology Inc

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

PCI11414C/PMX Overview

Use the download button to access the PCI11414C/PMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCI11, or try a keyword search, such as Bus Controllers

About Microchip

Microchip Technology Inc. is a leading manufacturer of microcontrollers and semiconductor devices for a wide range of applications in the aerospace, automotive, consumer electronics, industrial, and medical industries. Alongside a comprehensive product portfolio, Microchip Technology Inc. also provides easy-to-use development tools that enable engineers to create optimal designs quickly with minimal iterations to reduce risk while lowering total system costs to market. Headquartered in Chandler, Arizona, th
