PCIA60W36M400A1/AA footprint, schematic symbol and 3D model by Positronic

Symbol

click to zoom

PCB Footprints

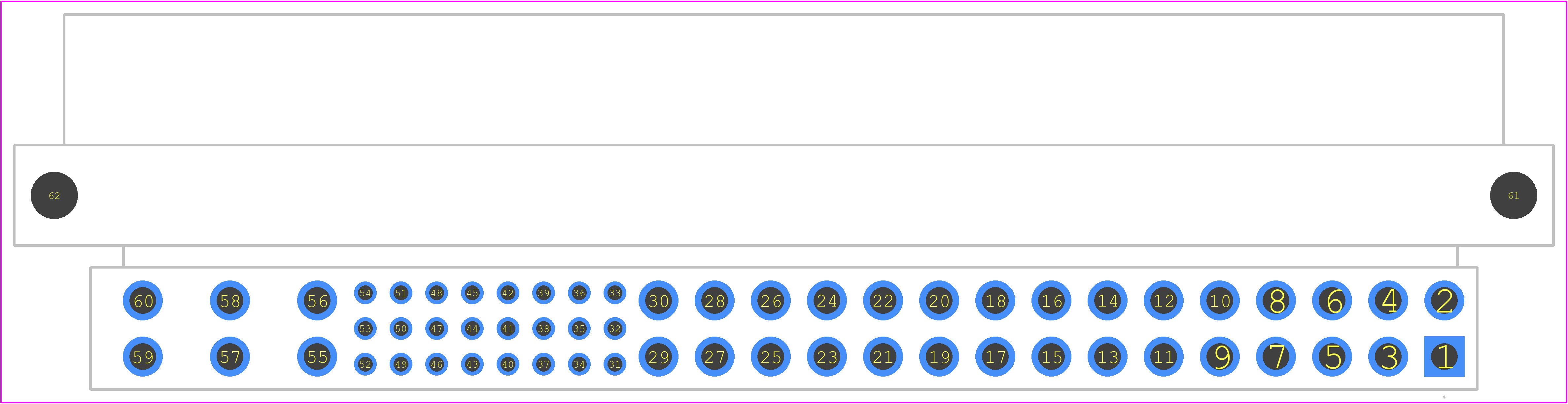

PCIA60W36M400A1/AA - Positronic PCB footprint - Other - Other - PCIA60W36M400A1/AA-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for PCIA60W36M400A1/AA
Part Number PCIA60W36M400A1/AA
Manufacturer Positronic
Pin Count 60
Part Category Connector
Package Category Other
Footprint Name Other - PCIA60W36M400A1/AA-1
Released Date Aug 2, 2025
Last Modified Date Dec 11, 2025 11:43 AM UTC
Pinout / Pin List Click Here (Member Only)

PCIA60W36M400A1/AA Details

Manufacturer Part Number:
PCIA60W36M400A1/AA
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Amphenol Positronic
YTEOL:
8
Additional Feature:
POLARIZED
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD FLASH OVER NICKEL
Contact Finish Termination:
GOLD FLASH OVER NICKEL
Contact Gender:
MALE
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYESTER
JESD-609 Code:
e4
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
YES
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
60
UL Flammability Code:
94V-0

PCIA60W36M400A1/AA Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the PCIA60W36M400A1/AA is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 2, which means it can operate reliably in applications with vibrations up to 15 Hz to 2000 Hz, 10 G peak acceleration.
Yes, the PCIA60W36M400A1/AA is designed to operate in harsh environments. It has an operating temperature range of -55°C to 125°C and can withstand humidity up to 95% RH. However, it's essential to follow the recommended derating guidelines for high-temperature applications.
The PCIA60W36M400A1/AA has a mating cycle life of 500 cycles minimum. This means it can withstand at least 500 connect and disconnect cycles without compromising its performance or reliability.
Yes, the PCIA60W36M400A1/AA can accommodate wire sizes ranging from 20 AWG to 28 AWG. However, it's essential to follow the recommended wire stripping and termination guidelines to ensure reliable connections.

Trust Checks

Community Provided

System Verified

Community Approved

PCIA60W36M400A1/AA Overview

Use the download button to access the PCIA60W36M400A1/AA schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like PCIA6, or try a keyword search, such as Power Connectors

About Positronic

Positronic is a global manufacturer of high-reliability electronic connectors serving customers in a variety of industries, including aerospace, defense, industrial, and medical. Positronic's products include rectangular connectors, circular connectors, D-subminiature connectors, and power & hybrid connectors. The company also offers customized solutions for customers with unique needs. Its connectors are designed to meet demanding requirements for reliability, performance, and durability.
